Fastpipe® 1" Cooling Kit F28092

This item is NOT returnable.

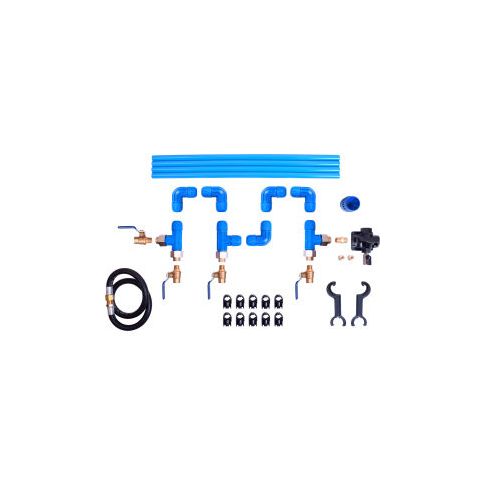

Set up a compressed air cooling system. Hot air exits the air compressor and is cooled thru 30 ft of aluminum piping drain moisture at 4 locations. The fastpipe® rigid pipe is all aluminum and powder coated on the outside. No glue soldering or crimping needed. Simply cut the pipe to length insert in the fitting and tighten. Kit contains 30 ft. Pipe 4 drain points 5 elbows 3 tee fittings compressor jumper hose wall clips tools. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" easy to install versatile solution to eliminate excess moisture in an air system hot air flows into the cooling loop and travels a total distance of approximately 27 feet cooling the air and causing water vapor to condense rectangular construction allows for easy draining through the ball valves inexpensive compared to the cost of a powered air dryer or after cooler f28092 parts list 1" fastpipe®ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" qty 4 f2863 1" x 7'6" pipe qty 5 f2003 1" fastpipe® elbows qty 3 f2009 1" fastpipe® reducing tee x 1/2" fnpt qty 2 f3100 1" fastpipe® large hex nut qty 2 f3111 1" fastpipe® insert gasket qty 2 f3175 1" fastpipe® brass insert x 3/4" fnpt qty 1 k35075m 3/4" npt male x female brass ball valve qty 3 k35050m 1/2" npt male x female brass ball valve qty 1 50620 3/4" x 1/2" npt brass hex nipple qty 1 f2025 wall outlet w 3/4" fnpt inlet qty 1 f0142 deburr tool qty 2 f2020 1" spanner wrench qty 1 f2022-10 1" fastpipe® wall clips (10 pack) qty 1 f0215 3/4" x 3ft compressor jumper hose
