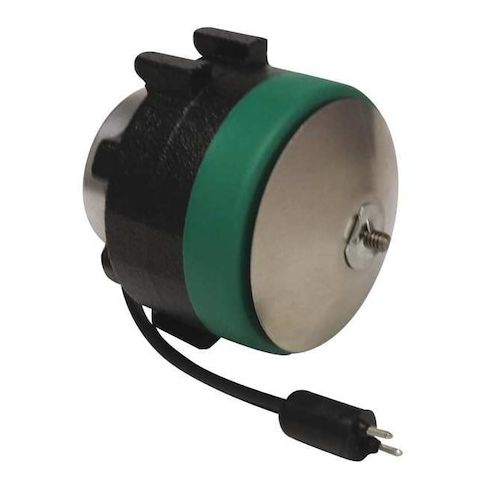

Unit Bearing Motor, 1/57 hp MPN:UTBCF1701E56C
Unit Bearing Motor, 1/57 hp
This compact Unit Bearing Motor is designed for single-phase applications, offering reliable operation and efficient performance. With a 1/57 HP rating and 1,725 nameplate RPM, it's suitable for a range of uses, including small machinery, equipment, and appliances. The motor's totally enclosed air-over design and cast iron frame ensure durability and resistance to harsh environments. Its compact size and horizontal or vertical shaft mounting options make it versatile for installation in tight spaces. Ideal for applications where space is limited, this motor provides a reliable and efficient solution for various industries and applications.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design protects the motor from dust and moisture.
- Motor Thermal Protection Auto feature prevents overheating and motor damage.
- Cast Iron Motor Frame Material provides durability and resistance to wear and tear.
Top product applications:
- Pump for small residential water heaters
- Conveyor systems for light industrial use
- Fans for residential or light commercial ventilation systems
Unit Bearing Motor, Single Phase, Motor Design ECM, 1/57 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 0.30 A Full Load Amps, Non-Standard Frame, Output Watts 13 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position Horizontal or Vertical Shaft Up
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 2.73
