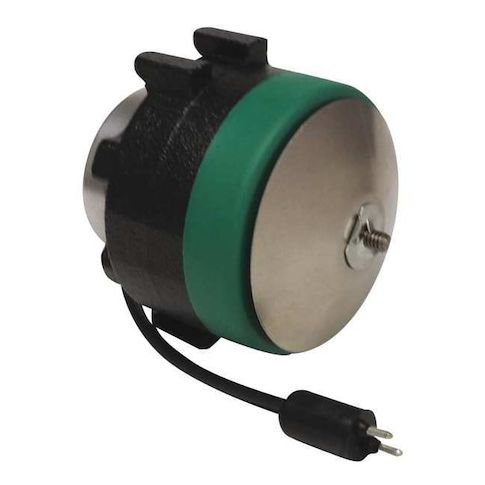

Unit Bearing Fan Motor, 1/86 HP, 1700 rpm MPN:UTBCF1701E56C
Unit Bearing Fan Motor, 1/86 HP, 1700 rpm
This compact unit bearing fan motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase, ECM design provides efficient operation and low energy consumption. With a nameplate RPM of 1,700 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in various environments. Its totally enclosed air-over design protects against dust and moisture, making it ideal for applications in harsh conditions. The motor's compact size and lightweight design also make it easy to install and maintain, reducing downtime and increasing overall efficiency.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design for protection against dust and moisture
- Motor Thermal Protection for automatic shutdown in case of overheating
- Cast Iron Motor Frame for durability and resistance to wear and tear
Top product applications:
- HVAC systems
- Industrial automation equipment
- Medical equipment
Unit Bearing Motor, Single Phase, Motor Design ECM, 1/86 HP, Nameplate RPM 1,700, No. of Speeds 1, Voltage 115V AC, 0.12 A Full Load Amps, Non-Standard Frame, Output Watts 4 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position Horizontal or Vertical Shaft Up
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 4.30
- Package Height: 4.20
- Package Weight: 2.70
Product info last updated on February 4, 2026 11:54pm UTC
Category: Motors
