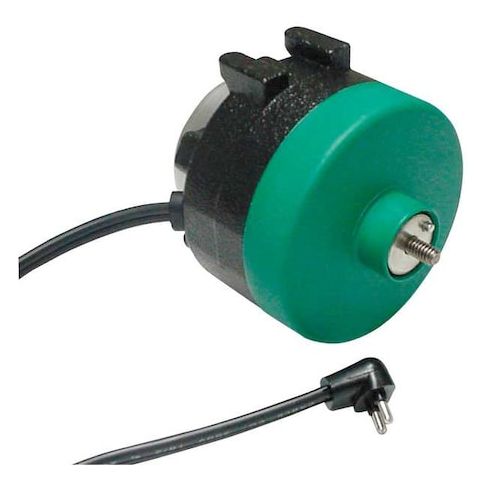

Unit Bearing Motor, 1/60 hp MPN:UTB1CB1551EM56
Unit Bearing Motor, 1/60 hp
This 1/60 horsepower ECM unit bearing motor is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with a maximum ambient temperature of 40 degrees C, this motor features a totally enclosed air-over design and a cast iron frame for durability. With a single-phase design and a maximum current draw of 0.30 amps, it is easy to integrate into your existing systems. Perfect for use in low-power applications such as pumps, fans, and conveyor systems, this motor offers a compact and reliable solution for your industrial needs.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Motor Shaft Rotation is Clockwise
- Single Phase Motor Design
Top product applications:
- Pumps and compressors for small-scale industrial applications
- Small fans and blowers for residential or commercial use
- Low-power machinery such as textile equipment or medical devices
ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/60 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.30 A Full Load Amps, Non-Standard Frame, Output Watts 6 to 12 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 13.00
- Package Height: 4.90
- Package Weight: 17.04
Product info last updated on February 22, 2026 11:23pm UTC
Category: Motors
