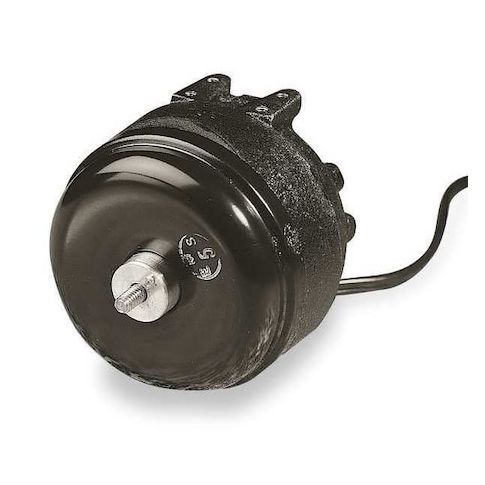

Unit Bearing Motor, 1/30 hp MPN:ESP-L25EM2
Unit Bearing Motor, 1/30 hp
This 1/30 HP unit bearing motor is a reliable and efficient solution for a variety of applications. Designed for single-phase use, it features a shaded pole motor design and operates at 1,500 nameplate RPM. With a compact, cast iron frame and totally enclosed air-over design, it provides protection from dust and moisture. Suitable for applications where a low-profile motor is required, it is ideal for use in residential, commercial, and industrial settings. Its compact size and quiet operation make it an excellent choice for use in fan motors, air purifiers, and other small appliances.
Top product features:
- Single Phase operation
- Totally Enclosed Air-Over motor enclosure design
- Motor shaft rotation is in a clockwise direction
Top product applications:
- Small appliances
- Pumps
- Fans
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.60 A Full Load Amps, Non-Standard Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.20
- Package Height: 6.60
- Package Weight: 4.35
Product info last updated on March 11, 2026 4:05pm UTC
Category: Motors
