Unit Bearing Motor, 1/20 hp MPN:ESP-L35EM2

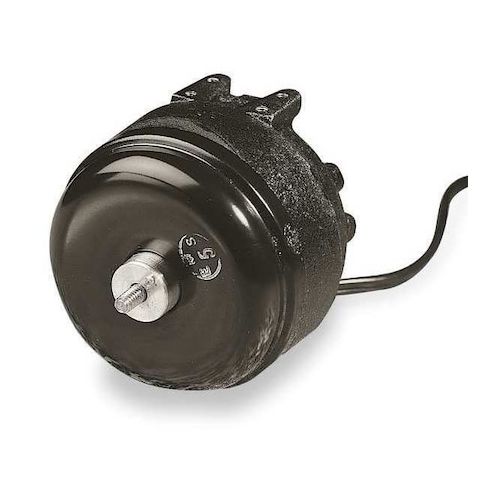

Unit Bearing Motor, 1/20 hp
This 1/20 HP unit bearing motor is a reliable and efficient solution for a wide range of applications. Designed for single-phase operation, it features a shaded pole motor design and operates at 1,500 RPM. Suitable for use in environments with a maximum ambient temperature of 40°C, this motor is perfect for applications such as small machinery, appliances, and medical equipment. Its compact size and totally enclosed air-over design make it an ideal choice for space-constrained installations. With a service factor of 1, this motor provides consistent performance and is easy to integrate into existing systems.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design provides protection from dust and moisture.
- Single Phase Motor Design with Shaded Pole provides a cost-effective solution for low-power applications.
- Motor Thermal Protection Auto provides automatic shutdown to prevent overheating and prolong motor lifespan.
Top product applications:
- Low-speed conveyor systems
- Small industrial fans
- Pumps for residential water treatment systems
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.70 A Full Load Amps, Non-Standard Frame, Output Watts 35 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.10
- Package Height: 6.40
- Package Weight: 4.40
Product info last updated on January 10, 2026 1:08pm UTC
Category: Motors
