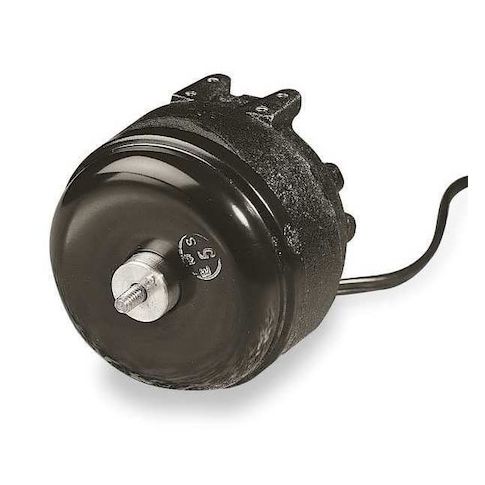

Unit Bearing Motor, 1/30 hp MPN:ESP-L25EM1
Unit Bearing Motor, 1/30 hp
This compact 1/30 hp unit bearing motor is ideal for a variety of low-power applications, including small machinery, pumps, and fans. Its single-phase design and 1,500 RPM make it suitable for tasks that require consistent, low-speed operation. The motor's totally enclosed air-over design provides protection from dust and moisture, while its cast iron frame ensures durability. With a maximum ambient temperature of 40 degrees C and a service factor of 1, this motor is perfect for use in a range of industries, including manufacturing, HVAC, and water treatment. Its compact size and low power consumption make it an energy-efficient solution.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure provides protection from dust and debris
- Motor Shaft Rotation is Clockwise
- Shaded Pole Motor Design provides a low-cost and reliable operation
Top product applications:
- Pumps and Fans
- Conveyor Systems
- Small Industrial Machinery
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 1.1 A Full Load Amps, Non-Standard Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.20
- Package Height: 6.60
- Package Weight: 4.40
Product info last updated on January 10, 2026 1:15pm UTC
Category: Motors
