Unit Bearing Motor, 1/15 hp MPN:ESP-OL50EM1

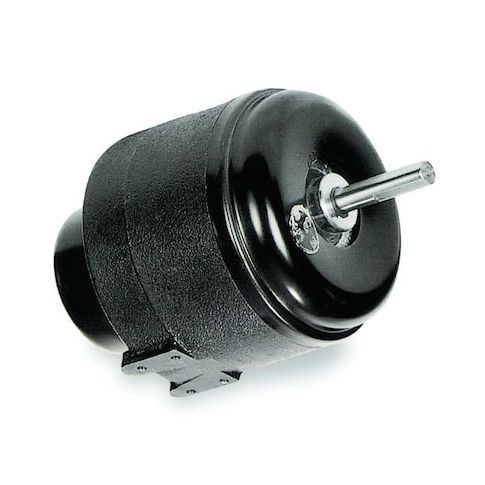

Unit Bearing Motor, 1/15 hp
This compact 1/15 HP single-phase unit bearing motor is ideal for a variety of applications, including residential and commercial use. Its shaded pole design and 1,500 RPM nameplate speed make it suitable for low-power requirements. The motor's open-air-over enclosure and cast iron frame ensure durability and reliability. With a maximum ambient temperature of 40°C, it can operate in a range of environments. Its compact size and lightweight design make it easy to install and maintain. This motor is perfect for use in residential lighting, fans, and small appliances, as well as commercial applications such as vending machines and office equipment.
Top product features:
- Single Phase Operation
- Shaded Pole Motor Design
- Cast Iron Motor Frame
Top product applications:
- Home Automation Systems
- Industrial Automation Systems
- Medical Device Equipment
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 1.7 A Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position All Angle
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.20
- Package Height: 8.20
- Package Weight: 6.00
