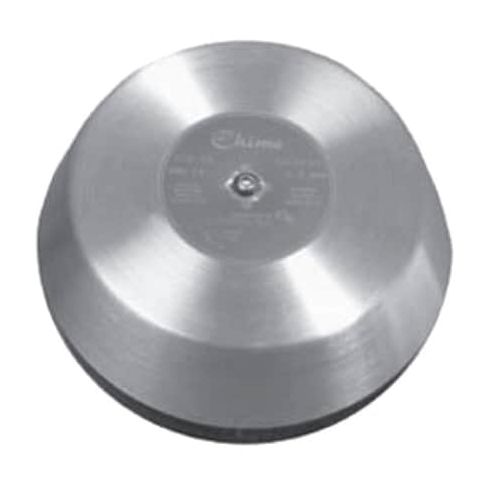

Chime, Surface Mount, 24V AC, 91 dB, Pulsed, Satin Aluminum, 6 1/2 in MPN:338-G5
Free Shipping
In Stock
The CHIME from Edwards Signaling is a reliable and secure solution for indoor applications. This 24V, 60HZ chime features a tamper-proof design and no exposed terminals, ensuring a safe and secure installation. The Adataplate mounting plate provides a convenient and easy-to-use mounting solution. Suitable for a variety of applications, including residential and commercial settings, the CHIME is a versatile and reliable choice. Its compact size and easy installation make it an ideal solution for doorbells, entry systems, and other indoor alert systems.
Top product features:
- No Exposed Terminals
- Tamper-Proof Cover Screw
- Adataplate(R) Mounting Plate
Top product applications:
- Doorbell system
- Security alarm system
- Residential intercom system
EDWARDS SIGNALING 338-G5 is a surface-mount chime rated for 24V AC, 60 Hz operation. It provides a pulsed chime sound for audible signaling in facility and building notification applications, with a maximum sound output of 91 dB at 1 m and 81 dB at 10 ft. The unit features a satin aluminum housing and includes an Adataplate(R) mounting plate and mounting hardware.
Key Features:
- Product type: Chime with chime sound style and pulsed sound pattern
- Electrical rating: 24V AC operation, 0.5 A operating current, 12 VA
- Sound output: 91 dB maximum at 1 m
- 81 dB maximum at 10 ft
- Connection type: Screw terminal
- Mounting style: Surface mount
- Construction: Satin aluminum housing with stainless steel striker
- Cover: No exposed terminals and tamper-resistant cover screw
- Dimensions: 6 1/2 in overall diameter
- 3 1/8 in overall length
- Includes: Adataplate(R) mounting plate and mounting hardware
- Standards: UL Listed
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 15.60
- Package Height: 15.60
- Package Weight: 32.05
