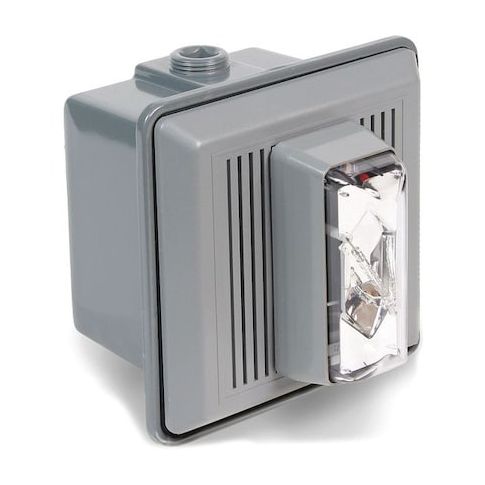

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Clear Lens, Gray Housing MPN:868STRC-N5
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a reliable and versatile warning device designed for a variety of applications, including industrial, commercial, and institutional settings. Its 90 dB sound level and 150 CP light output ensure maximum visibility and audibility, even in harsh environments. The thermoplastic housing and clear lens provide durability and optimal light transmission. Suitable for outdoor use in temperatures ranging from 32 to 120°F, this horn strobe is ideal for applications such as emergency exit lighting, machine guarding, and area surveillance. Its compact size and easy installation make it a convenient solution for a range of warning needs.
Top product features:
- 120V AC power supply
- 90 dB sound level at 10 feet
- 60 flashes per minute
Top product applications:
- Emergency Alarm System
- Security System for High-Risk Areas
- Fire Alarm System
EDWARDS SIGNALING 868STRC-N5 is a horn strobe audible and visual signaling device. It combines a continuous horn with a xenon strobe in a surface-mount design, providing sound and light indication for applications using a direct-wired signaling device. The unit operates on 120V AC and features a thermoplastic housing with a clear lens and gray body for use in compatible applications per manufacturer specifications.
Key Features:
- Audible and visual signal: horn and strobe combination
- Sound output: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Sound type: continuous horn with 1 sound pattern
- Light output: 150 CP xenon strobe
- Flash rate: 60 flashes per minute
- Power: 120V AC, direct wire, wire leads connection
- Current draw: 148 mA (0.148 A)
- Mounting: surface mount
- Housing: thermoplastic, gray housing with clear lens
- Size: 5.5 in H x 5.5 in W x 0.625 in D
- Operating temperature: refer to manufacturer specifications for applicable temperature range and installation environment
- Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 6.70
- Package Height: 8.10
- Package Weight: 3.30
