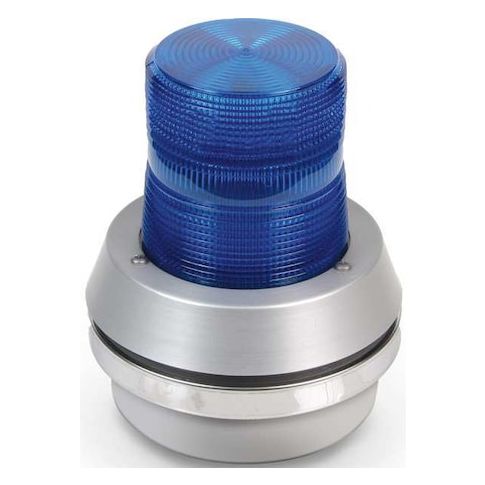

Horn Strobe, Horn, Pulse, 24V DC, 85 dB, Cast Aluminum, Blue Lens, Gray Housing, Surface Mount MPN:51XBRFB24D
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a versatile and reliable signaling device designed for a variety of applications, including emergency lighting, industrial settings, and security systems. Its 85 dB sound output and flashing strobe ensure maximum visibility and audible warning in high-noise environments. Constructed from durable cast aluminum with a blue lens and gray housing, this unit is built to withstand harsh conditions. Easy to install and surface mount, it's an ideal solution for commercial and industrial facilities, warehouses, and construction sites where safety and compliance are top priorities.
Top product features:
- It produces a 85 dB sound level.
- It produces a strobe effect.
- It is powered by a 24V DC source.
Top product applications:
- Security Systems
- Fire Alarm Systems
- Emergency Lighting Systems
The EDWARDS SIGNALING 51XBRFB24D is a surface-mount horn strobe with a pulsed audible signal and flashing blue visual indicator. It is rated for 24V DC operation and combines an 85 dB alarm at 10 ft with an LED beacon for audible and visual signaling applications in manufacturer-specified indoor and outdoor locations. The cast aluminum housing, polycarbonate Fresnel lens, and junction box base are configured for fixed installation with direct-wire connection.
Key Features:
- Audible alarm type: Horn with pulse sound pattern and 1 sound pattern.
- Alarm volume: 85 dB at 10 ft maximum
- 95 dB at 1 m maximum.
- Visual indicator: Flashing blue LED beacon with 65 flashes per minute.
- Voltage and current: 24V DC, 0.275 A operating current draw.
- Construction: Cast aluminum housing with blue polycarbonate Fresnel lens.
- Mounting: Surface-mount installation with junction box base
- mounting hardware included.
- Connection and control: Conduit hole connection with direct-wire control protocol.
- Size: 6 in diameter x 7.375 in height x 7 3/8 in overall depth.
- Operating temperature range: -31 F to 160 F.
- Listings: cUL, UL.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 6.80
- Package Height: 8.20
- Package Weight: 2.25
