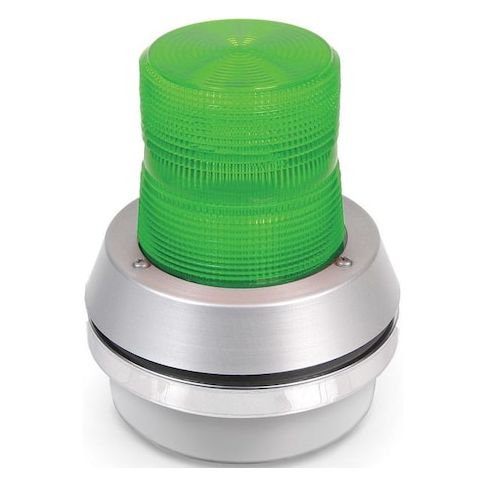

Horn Strobe, Horn, Pulse, 120VAC, 85 dB, Cast Aluminum, Green Lens, Gray Housing, Surface Mount MPN:51XBRFG120A
Free Shipping
In Stock
This Edwards Signaling Horn Strobe is a reliable and versatile signaling device designed for various applications. Suitable for use in industrial, commercial, or residential settings, it produces a 85 dB audible signal and a bright flash of light to grab attention. The cast aluminum construction ensures durability and longevity, while the green lens and gray housing provide a sleek and professional appearance. Its surface mount design makes installation easy and convenient. This horn strobe is ideal for emergency exit signs, alarm systems, and security applications, providing a clear and effective way to alert people in case of an emergency or alert.
Top product features:
- Horn Strobe emits a loud audible alarm at 85 dB.
- The Horn Strobe features a bright strobe light to draw attention.
- The device is constructed with cast aluminum for durability.
Top product applications:
- Security Systems
- Fire Alarm Systems
- Emergency Evacuation Systems
EDWARDS SIGNALING 51XBRFG120A is a surface-mount horn strobe for audible and visual signaling in indoor and outdoor locations. It combines a pulsed horn with a flashing green LED beacon/strobe, operates on 120VAC, and uses a direct-wire connection through a conduit hole. The cast aluminum housing and polycarbonate Fresnel lens are components of a mounted signaling device.
Key Features:
- - Audible and visual signaling with pulsed horn output and flashing LED light
- - Sound output: 85 dB at 10 ft maximum
- 95 dB at 1 m maximum
- - Visual signal: flashing green LED light at 65 flashes per minute
- - Surface-mount design with junction box base
- mounting hardware included
- - Cast aluminum housing with polycarbonate Fresnel lens
- - Green lens with gray/silver housing
- - Electrical: 120VAC operating voltage, 0.175 A operating current, direct-wire power source
- - Connection: conduit hole
- - Temperature range: -31 degrees F to 160 degrees F
- - Rated lamp life: 148,000 hr
- - Dimensions: 6 in diameter, 7 3/8 in overall depth, 7.375 in height, 6 in width
- - Standards: cUL, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 6.70
- Package Height: 6.80
- Package Weight: 2.30
