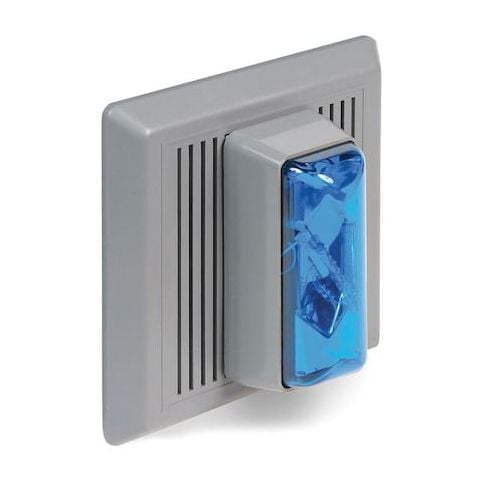

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Blue Lens, Gray Housing, Surface Mount MPN:869STRB-N5
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a reliable and versatile warning device designed for indoor and outdoor use. Its 90 dB horn and strobe light ensure maximum visibility and audibility in emergency situations. Engineered with a durable thermoplastic housing, this device withstands extreme temperatures and harsh environments. Suitable for surface mounting, it is ideal for use in commercial and industrial settings, such as warehouses, factories, and offices. Its compact size and easy installation make it a convenient solution for alarm systems, security applications, and fire safety protocols.
Top product features:
- Engineered thermoplastic housing provides durability and resistance to environmental factors.
- The device emits a 90 dB sound at 10 feet, meeting a standard for audible notification.
- A blue lens color is used to convey visual attention to the device's operation.
Top product applications:
- Industrial Security Systems
- Emergency Lighting Systems
- Fire Alarm Systems
EDWARDS SIGNALING 869STRB-N5 is a horn strobe that combines an audible horn and blue xenon strobe in one surface-mounted unit. It operates on 120V AC, is rated for indoor use, and includes audible and visual signaling features. The unit provides a continuous horn signal with a maximum sound output of 90 dB at 10 ft and 100 dB at 1 m.
Key Features:
- Product type: Horn strobe with continuous horn output and visual strobe indicator
- Sound output: Maximum 90 dB at 10 ft
- maximum 100 dB at 1 m
- Light output: 20 CP blue strobe with xenon light source and 60 flashes per minute
- Electrical rating: 120V AC, 148 mA current draw (0.148 A operating current)
- Construction: Thermoplastic housing with gray housing and blue lens
- Mounting and connection: Surface mount with wire leads and direct wire control
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- Operating temperature: 32°F to 120°F
- Certification: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 6.80
- Package Height: 6.70
- Package Weight: 1.35
