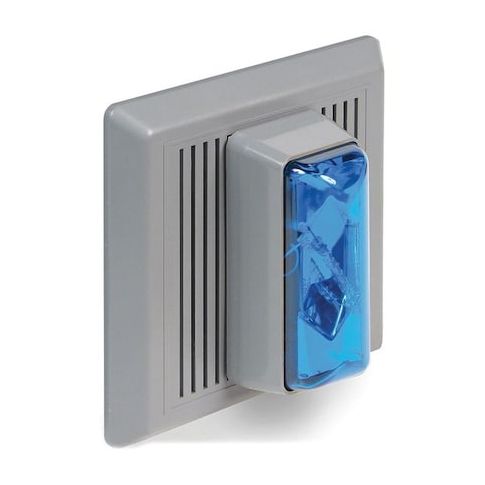

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing MPN:868STRB-AQ
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a versatile and reliable signaling device designed for outdoor use. With a 90 dB sound level and 20 CP light output, it provides effective notification in emergency situations. The device is powered by 24V AC or DC and features a thermoplastic housing with a blue lens, providing durability and visibility. Suitable for a range of applications, including industrial and commercial settings, the Horn Strobe meets UL standards and operates within a temperature range of 32 to 120°F. Its compact size and ease of mounting make it an ideal choice for surface mounting.
Top product features:
- Horn produces a 90 dB sound level at 10 feet.
- Flashes per minute are 60.
- Light output is 20 CP.
Top product applications:
- Industrial Security Systems
- Airport Perimeter Security
- Emergency Response Systems in High-Risk Areas
EDWARDS SIGNALING 868STRB-AQ is a horn strobe signaling device with a continuous horn and blue xenon strobe. It operates on 24V AC or 24V DC and is specified for indoor and outdoor use. The unit includes an audible horn and visual blue xenon strobe in a surface-mount design with a gray thermoplastic housing and blue lens.
Key Features:
- Audible alarm type: Horn with continuous sound pattern
- Sound output: 90 dB at 10 ft
- 100 dB maximum at 1 m
- Visual indicator: Blue strobe with xenon light source
- Light output: 20 CP with 60 flashes per minute
- Voltage: 24V AC, 24V DC
- Current draw: 462 mA at 24V AC
- 412 mA at 24V DC
- Mounting: Surface mount with wire lead connection
- Housing material: Thermoplastic
- Color: Blue lens, gray housing
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- Operating temperature: 32°F to 120°F
- Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 6.80
- Package Height: 8.30
- Package Weight: 3.30
