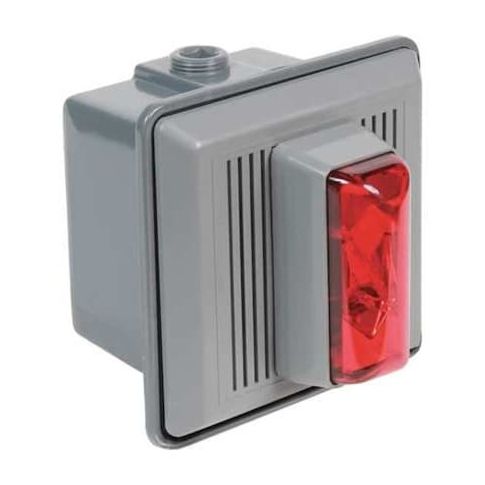

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Gray Housing, Red Lens MPN:868STRR-AQ
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a reliable and versatile safety solution for a variety of applications. Its 90 dB sound and bright red lens ensure maximum visibility and warning in emergency situations. Suitable for surface mounting, this compact device is ideal for use in industrial, commercial, and residential settings. Its thermoplastic housing provides durability and resistance to extreme temperatures, while its 24V AC/DC compatibility makes it easy to integrate into existing systems. With its small footprint and high visibility, the Horn Strobe is a valuable addition to any safety plan, providing peace of mind and protection for people and property.
Top product features:
- Engineered thermoplastic housing for durability
- 90 dB sound output for effective notification
- Red lens color for increased visibility
Top product applications:
- Industrial Security Systems
- Emergency Alarm Systems
- Fire Alarm Systems
EDWARDS SIGNALING 868STRR-AQ is an indoor horn strobe with a surface-mount design that combines an audible horn and a red xenon strobe in one unit. It operates on 24V AC or 24V DC and provides continuous audible output with visual signaling for alarm and warning applications.
Key Features:
- Audible horn and red xenon strobe in one unit
- Sound output: 90 dB at 10 ft.
- 100 dB maximum at 1 m
- Sound pattern: continuous horn
- Light output: 21 CP red xenon strobe
- Flash rate: 60 flashes per minute
- Voltage: 24V AC or 24V DC
- Current draw: 462 mA at 24V AC
- 412 mA at 24V DC
- Connection/control: wire leads with direct wire control
- Housing: gray thermoplastic with red lens
- Mounting: surface mount
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- For indoor use
- Operating temperature: 32°F to 120°F
- UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 6.70
- Package Height: 8.10
- Package Weight: 3.33
