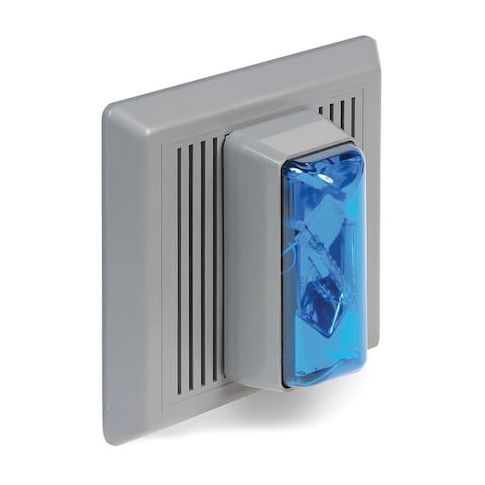

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Blue Lens, Gray Housing MPN:869STRB-AQ

• EDWARDS SIGNALING 869STRB-AQ is an indoor horn strobe that combines an audible horn with a blue xenon strobe in one direct-wire unit. It operates on 24V AC or 24V DC and provides a continuous sound pattern with visual strobe indication for facility signaling applications that specify both audible and visual notification.

  Key Features:

  • Product type: Horn and strobe with audible horn alarm and visual strobe indicator
  • Sound output: 90 dB at 10 ft
  • 100 dB maximum at 1 m
  • Sound pattern: Continuous
  • 1 sound pattern
  • Light output: 20 CP blue strobe with xenon light source
  • 60 flashes per minute
  • Voltage: 24V AC or 24V DC
  • Current draw: 462 mA at 24V AC
  • 412 mA at 24V DC
  • Connection/control: Wire leads with direct-wire control protocol
  • Construction: Thermoplastic housing in gray with blue lens
  • Mounting: Flush mount
  • surface mounting configuration
  • Dimensions: 5.5 in H x 5.5 in W x 5/8 in D
  • Operating temperature: 32°F to 120°F
  • Standards: UL Listed
