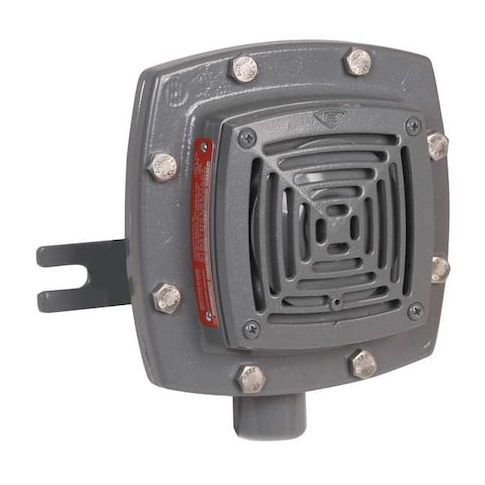

Horn, Horn, Continuous, 120V AC, 100 dB, Heavy Duty Die Cast, Gray, Wall/Pipe Mount MPN:878EX-N5
Free Shipping
In Stock
The Edwards Signaling Horn is a heavy-duty, continuous-sound alarm designed for indoor and outdoor use. Its 100 dB sound pattern ensures maximum attention in emergency situations, making it ideal for industrial, commercial, and institutional settings. The horn's corrosion-resistant, heat-flowed epoxy finish withstands harsh environments, while its NEMA 4X rating ensures reliable operation in extreme temperatures. Perfect for use in warehouses, factories, and public spaces, this horn provides a clear and consistent warning signal, ensuring safety and compliance with regulations. Its compact size and wall/pipe mount design make it easy to install and maintain.
Top product features:
- Corrosion Resistant Heat Flowed Epoxy Finish
- Continuous Sound Pattern
- Vibrating
Top product applications:
- Industrial Fire Alarm System
- Security and Emergency Response Systems
- Factory or Warehouse Alarm and Alert System
EDWARDS SIGNALING 878EX-N5 is a continuous audible horn rated for 120V AC. Horn signal sound output rating: 100 dB at 10 ft
- 110 dB at 1 m. The unit features a vibrating sound principle, no visual indicator, a gray die-cast housing, and a heat-flowed epoxy finish. It is rated for indoor and outdoor locations and is compatible with wall or pipe mounting.
Key Features:
- Audible alarm type: Horn with continuous sound pattern
- Sound output rating: 100 dB at 10 ft
- 110 dB at 1 m
- Voltage: 120V AC
- Operating current: 0.13 A
- Housing/material: Die cast
- Finish: Heat-flowed epoxy finish
- Mounting: Wall/Pipe
- Location rating: Indoor/Outdoor
- Hazardous location ratings: Class I, Division 1
- Class I, Division 2
- Class II, Division 1
- Class II, Division 2
- Hazardous class/division: I, II, III / 1, 2
- Enclosure rating: NEMA 4X
- Standards: UL Listed
- Operating temperature: -13°F to 104°F
- Overall size: 7 5/8 in L x 7 3/8 in W x 4 3/16 in D
- Visual indicator type: None
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.70
- Package Width: 10.80
- Package Height: 7.80
- Package Weight: 9.29
