Tone Generator, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5540M-24N5

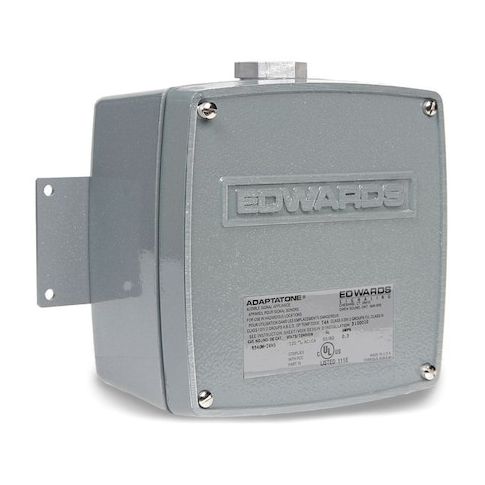

• The EDWARDS SIGNALING 5540M-24N5 is an audible tone generator with a horn-style output for warning and signaling applications. It produces a continuous tone at 110 dB and operates on 120V AC, with selectable volume and 55 sound patterns for system-wide tone selection. The unit is housed in gray zinc alloy and is intended for conduit, surface-mounted installation in locations consistent with the listed ratings.

  Key Features:

  • Alarm type: Audible horn with continuous sound output.
  • Sound options: 55 sound patterns with system-wide priority tone selection.
  • Sound level: 110 dB.
  • Electrical rating: 120V AC, 0.36 A operating current.
  • Construction: Gray zinc alloy housing.
  • Mounting/connection: Conduit, surface mount with wire leads.
  • Location ratings: Indoor/Outdoor, NEMA 3R, IP44.
  • Hazardous location ratings: Class I, Division 2
  • Class II, Division 2
  • Class III, Division 2.
  • Temperature range: -31°F to 104°F in hazardous locations
  • -40°F to 151°F in non-hazardous locations.
  • Size: 8 in. W x 6 in. L x 3-1/2 in. D.
  • Standards: cULus, UL Listed.
  • Additional features: Captive components
  • no visual indicator
  • no vibration.
