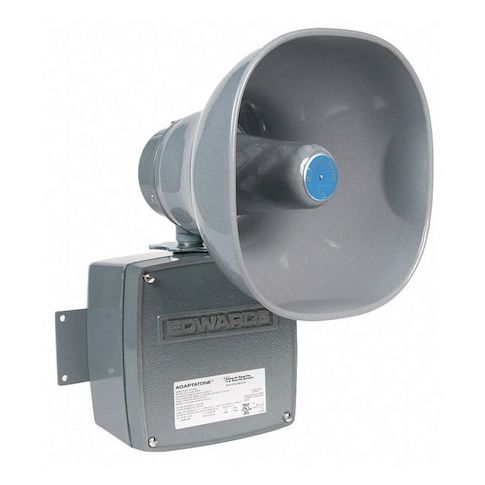

Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5531M-24N5

• The EDWARDS SIGNALING 5531M-24N5 is a surface-mount multi-tone audible signal with a horn-style output and continuous sound pattern. It operates on 120V AC and produces 95 dB minimum at 1 m, with 98 dB minimum and up to 110 dB at 10 ft. The unit features a gray zinc alloy housing with conduit/surface mounting and is rated for audible warning and notification applications in locations consistent with the listed indoor/outdoor and hazardous-location ratings.

  Key Features:

  • Audible horn with continuous sound output
  • 55 sound patterns
  • 120V AC operating voltage
  • 0.36 A operating current
  • Surface mount with conduit mounting and wire lead connection
  • Gray zinc alloy housing
  • Indoor/outdoor rating
  • Hazardous location ratings: Class I, Division 2
  • Class II, Division 2
  • Hazardous Class I, II, III
  • Hazardous Division 2
  • Ingress and enclosure ratings: IP44
  • NEMA 3R
  • Operating temperature: -31°F to 104°F in hazardous locations
  • -40°F to 151°F in non-hazardous locations
  • Captive components
  • cULus and UL Listed
  • Dimensions: 13 in. H x 8.25 in. W x 8.875 in. D
  • No visual indicator
