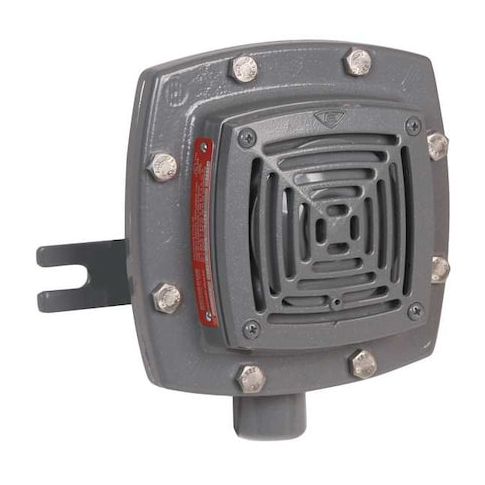

Horn, Horn, Continuous, 24V AC, 97 dB, Heavy Duty Die Cast, Gray, Wall Mount MPN:878EX-G5
Free Shipping
In Stock
The Edwards Signaling Horn is a heavy-duty, continuous alarm horn designed for indoor and outdoor use. Its 97 dB sound pattern ensures maximum visibility and attention in emergency situations, making it ideal for industrial, commercial, and hazardous locations. Constructed with a corrosion-resistant, heat-flowed epoxy finish and a heavy-duty die-cast housing, this horn can withstand extreme temperatures and harsh environments. Its wall-mount design allows for easy installation and space-saving placement. Perfect for use in areas where audible alarms are crucial, such as factories, warehouses, and hazardous material storage facilities, this horn provides reliable and effective warning signals.
Top product features:
- Heavy Duty Die Cast housing provides durability and resistance to wear and tear.
- Continuous sound pattern allows for sustained auditory alerting.
- Corrosion Resistant Heat Flowed Epoxy Finish ensures long-term reliability in harsh environments.
Top product applications:
- Industrial Safety Alarm
- Plant Emergency Notification System
- Highway Construction Site Alert
The EDWARDS SIGNALING 878EX-G5 is a wall-mount audible horn for indoor and outdoor signaling. It operates on 24V AC and produces a continuous horn signal with a rated sound level of 97 dB, with maximum output ratings of 110 dB at 1 m and 100 dB at 10 ft. The die-cast housing has a gray heat-flowed epoxy finish, and the unit is rated for hazardous locations including Class I and II, Division 1 and 2.
Key Features:
- Audible alarm type: Horn with continuous sound pattern.
- Sound output: 97 dB nominal
- maximum 110 dB at 1 m and 100 dB at 10 ft.
- Voltage/current: 24V AC operation with 0.625A operating current.
- Construction: Die-cast housing with gray heat-flowed epoxy finish.
- Mounting: Wall-mount design.
- Location rating: Indoor and outdoor use.
- Hazardous location rating: Class I, Division 1
- Class I, Division 2
- Class II, Division 1
- Class II, Division 2.
- Enclosure rating: NEMA 4X.
- Operating temperature: -13 F to 104 F.
- Size: 4.875 in H x 4.875 in W x 3.3125 in D.
- Standard: UL Listed.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 10.70
- Package Height: 7.70
- Package Weight: 9.35
