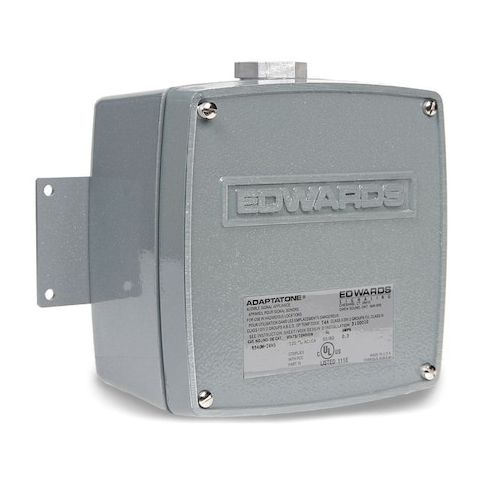

Tone Generator, Horn, Continuous, 24V AC/DC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5540M-24AQ

• The EDWARDS SIGNALING 5540M-24AQ is a surface-mount tone generator with a horn-style audible output for audible signaling applications. It operates on 24V AC/DC and produces a continuous 110 dB signal, with 55 sound patterns and system-wide priority tone selection. The zinc alloy housing is rated IP44 and NEMA 3R and supports conduit mounting.

  Key Features:

  • Audible alarm type: Horn with tone sound style and continuous sound pattern
  • Sound output: 110 dB
  • Voltage: 24V AC/DC
  • Current draw: 0.74 A at 24V DC / 1.3 A at 24V AC
  • Number of sound patterns: 55
  • Volume selection: Selectable volume
  • Connection type: Wire leads
  • Power source: Wire
  • Mounting: Conduit, surface mount
  • Housing material: Zinc alloy
  • Color: Gray
  • Ratings: IP44, NEMA 3R
  • Hazardous location classifications: Class I, Division 2
  • Class II, Division 2
  • Class I, II, III
  • Division 2
  • Operating temperature: -31 to 104 degrees F in hazardous locations
  • -40 to 151 degrees F in non-hazardous locations
  • Standards: cULus, UL Listed
  • Features: Captive components, system-wide priority tone selection
  • Visual indicator: None
  • Vibration: None
  • Overall size: 8 in. W x 6 in. L x 3-1/2 in. D
