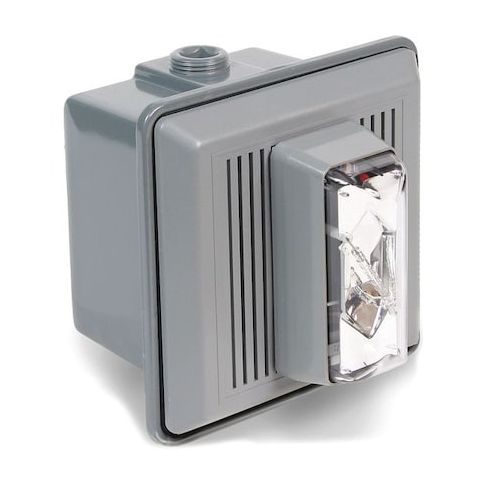

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Clear Lens, Gray Housing MPN:868STRC-AQ
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a reliable and versatile warning device designed for industrial and commercial applications. Its 90 dB sound output and bright strobe light ensure maximum visibility and audibility in emergency situations. The thermoplastic housing is engineered for durability and can withstand temperatures between 32°F and 120°F. Suitable for surface mounting, this device is ideal for use in warehouses, factories, and other high-traffic areas where safety and warning are paramount. Its compact size and easy installation make it a convenient solution for businesses and organizations seeking to enhance their emergency response systems.
Top product features:
- Engineered thermoplastic housing provides durability and resistance to environmental factors
- Surface mounting allows for easy installation in various locations
- 90 dB sound level alerts users to potential hazards or alarms
Top product applications:
- Industrial Fire Alarm Systems
- Emergency Lighting Systems
- Security Systems for High-Risk Facilities
EDWARDS SIGNALING 868STRC-AQ is an outdoor horn strobe that combines an audible horn and xenon strobe in a direct-wire unit. It operates on 24V AC or 24V DC and provides a continuous horn signal in a gray thermoplastic housing with a clear lens for surface-mounted signaling applications.
Key Features:
- Audible and visual signaling device with horn and strobe functions
- Sound output: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Sound pattern: continuous horn
- Light output: 150 CP xenon strobe flashing at 60 flashes per minute
- Voltage: 24V AC, 24V DC
- Current draw: 462 mA at 24V AC
- 412 mA at 24V DC
- Gray thermoplastic housing with clear lens
- Surface-mount design with wire leads and direct-wire connection
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- Outdoor rating
- UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 6.70
- Package Height: 8.00
- Package Weight: 3.30
