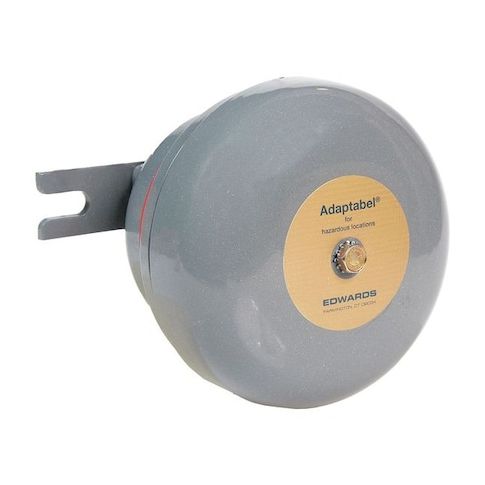

Bell, Bell, Continuous, 24V DC, 83 dB, Steel, Gray, Wall Mount MPN:435EX-6G1

• The EDWARDS SIGNALING 435EX-6G1 is a continuous audible bell for wall-mounted signaling systems. It operates on 24V DC and produces an 83 dB sound level at 10 ft. It features a steel housing, gray finish, and NEMA 4-rated construction, and is intended for wall-mounted audible warning applications.

  Key Features:

  • Alarm Type: Audible bell with continuous sound pattern
  • Sound Output: 83 dB at 10 ft
  • 93 dB maximum at 1 m
  • Voltage: 24V DC operating/input voltage
  • Current Draw: 0.21 A
  • operating current 0.240 A
  • Construction: Steel housing, gray finish, completely assembled design
  • Mounting: Surface mount, wall installation
  • Connection Type: Wire leads
  • Protection Rating: NEMA 4
  • Location Rating: Outdoor
  • Hazardous Class/Division: Class I, II, III
  • Division 1, 2
  • Visual Indicator Type: No visual indicator
  • Standards: UL Listed
  • Dimensions: 6 in. diameter, 5 in. depth, 7 in. height
