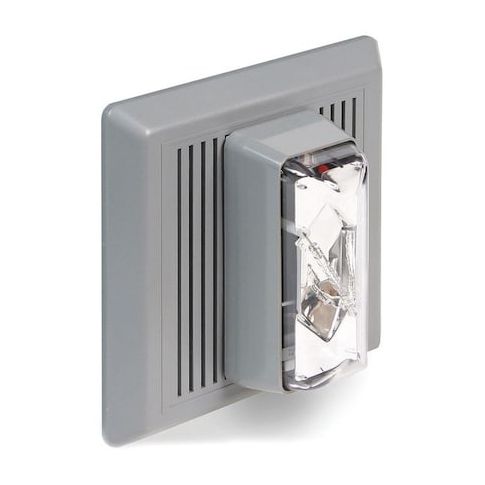

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Clear Lens, Gray Housing MPN:869STRC-AQ
Free Shipping
In Stock
This Edwards Signaling Horn Strobe offers a reliable and versatile warning solution for indoor and outdoor applications. Its engineered thermoplastic housing provides durability and resistance to extreme temperatures, making it suitable for use in a wide range of environments. The 90 dB alarm ensures clear visibility and hearing, even in noisy areas. Perfect for industrial, commercial, or institutional settings, this device can be mounted flush or on a panel, providing flexibility in installation. Its compact size and low power consumption make it an ideal choice for applications where space and energy efficiency are crucial.
Top product features:
- Engineered thermoplastic housing provides durability and resistance to harsh environments
- 90 dB sound level ensures the product is audible in a variety of settings
- Clear lens allows for maximum visibility of the strobe light
Top product applications:
- Emergency Exit Sign
- Security Alarm System
- Industrial Safety Equipment
EDWARDS SIGNALING 869STRC-AQ is an indoor horn strobe that includes audible and visual signaling components. This direct-wire unit combines a continuous horn with a xenon strobe in a flush-mount format for facility alarm and notification applications using both sound and light indication.
Key Features:
- Horn and strobe combination with continuous audible output and visual strobe indicator
- Operates on 24V AC or 24V DC
- Sound level: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Current draw: 462 mA at 24V AC
- 412 mA at 24V DC
- Light output: 150 CP with xenon light source and 60 flashes per minute
- Thermoplastic housing with clear lens and gray finish
- Wire lead connection
- direct-wire control protocol
- Flush-mount installation
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- Indoor operating temperature: 32°F to 120°F
- UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.50
- Package Weight: 1.20
