Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5531M-120N5

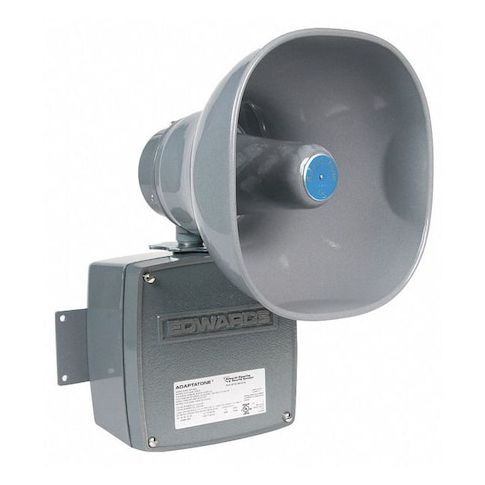

• EDWARDS SIGNALING 5531M-120N5 is a surface-mount multi-tone signal with a horn-style audible alarm and continuous sound output. It operates on 120V AC and produces up to 110 dB for audible warning applications in locations consistent with its listed ratings. The zinc alloy housing is rated for Class I, Division 2 and Class II, Division 2 hazardous locations, with NEMA 3R and IP44 enclosure ratings.

  Key Features:

  • Audible alarm type: Horn
  • Sound style: Horn
  • Sound pattern: Continuous
  • Sound output: 110 dB maximum at 10 ft
  • 98 dB minimum at 10 ft
  • 95 dB minimum at 1 m
  • Multi-tone operation: 55 sound patterns
  • Voltage: 120V AC
  • Current draw: 0.38 A
  • Operating current: 0.360 A
  • Mounting: Conduit, surface mount
  • Connection type: Wire leads
  • Housing material: Zinc alloy
  • Color: Gray
  • Hazardous location ratings: Class I, Division 2
  • Class II, Division 2
  • Hazardous class: I, II, III
  • Hazardous division: 2
  • Enclosure ratings: NEMA 3R
  • IP44
  • Operating temperature: -31 to 104 Degrees F in hazardous locations
  • -40 to 151 Degrees F in non-hazardous locations
  • Features: Captive components
  • Standards: cULus, UL Listed
  • Visual indicator type: None
  • Vibration: None
  • Overall dimensions: 13-3/4 in L x 8 in W x 8-3/4 in D
