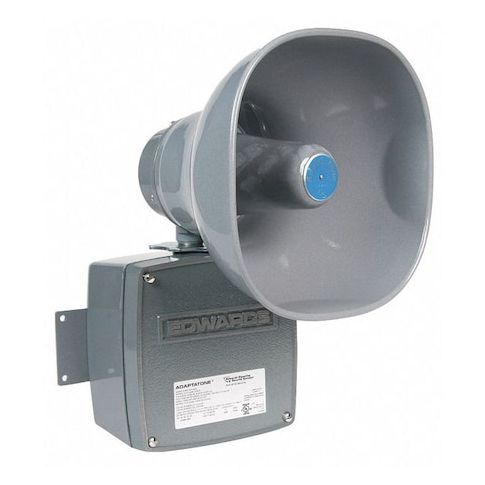

Remote Speaker Amplifier, Horn, Continuous, 120V AC, 100 dB, Zinc Alloy, Gray MPN:5532M-N5
Free Shipping
In Stock
The Edwards Signaling Remote Speaker Amplifier is a reliable and durable solution for audible alarm systems. Designed for indoor and outdoor use, it features a 100 dB continuous sound pattern and a corrosion-resistant zinc alloy housing. The amplifier is ideal for applications such as emergency evacuation systems, industrial alarm systems, and security systems. Its compact size and easy installation make it a convenient choice for a variety of settings. With a lead time of just one day and a minimum order quantity of one, this product is perfect for businesses and organizations that require a quick and efficient solution.
Top product features:
- Continuous sound pattern
- Corrosion resistant electrostatic heat flowed epoxy finish
- Captive components
Top product applications:
- Factory warning systems
- Security alarm systems
- Industrial alarm systems
EDWARDS SIGNALING 5532M-N5 is a remote speaker amplifier with a continuous horn output for audible signaling in indoor and outdoor locations. It operates on 120V AC and produces a nominal 100 dB output, with published sound levels ranging from 95 to 120 dB at 1 m and 98 to 113 dB at 10 ft. It includes a zinc alloy housing and corrosion-resistant electrostatic heat flowed epoxy finish.
Key Features:
- Audible alarm type: Horn with continuous sound pattern.
- Sound output: 100 dB nominal
- 95 to 120 dB at 1 m and 98 to 113 dB at 10 ft.
- Electrical rating: 120V AC, 0.36 A operating current.
- Construction: Zinc alloy housing in gray.
- Mounting and connection: Surface mount with conduit or surface mounting options and wire leads connection.
- Protection ratings: IP44 and NEMA 3R.
- Hazardous location ratings: Class I, Division 2 and Class II, Division 2
- Hazardous Class I, II, III
- Hazardous Division 2.
- Operating temperature: -31°F to 104°F for hazardous locations
- -40°F to 151°F for non-hazardous locations.
- Features: Captive components and corrosion-resistant electrostatic heat flowed epoxy finish.
- Standards: cUL Listed and UL Listed.
- Visual indicator: None.
- Vibration: None.
- Overall size: 13 in. H x 8.25 in. W x 8.875 in. D.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 11.80
- Package Height: 10.50
- Package Weight: 12.70
