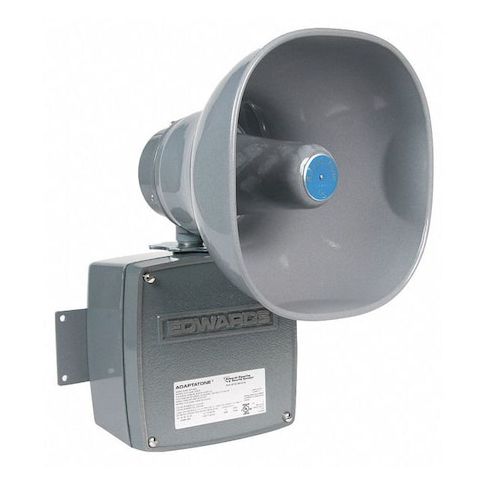

Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5530M-24N5
Free Shipping
In Stock
The Edwards Signaling Multi-Tone Signal is a reliable and versatile audible alarm designed for indoor and outdoor use. Its continuous 110 dB sound pattern ensures maximum attention in emergency situations. Constructed from durable zinc alloy, this horn is suitable for both hazardous and non-hazardous locations, including Division 2 areas. Its compact size and surface mount design make it easy to integrate into existing systems. Ideal for use in industrial, commercial, and institutional settings, this horn provides a dependable warning solution for a wide range of applications, from security and emergency response to manufacturing and facility management.
Top product features:
- Captive Components
- Suitable for Division 2 Locations
- UL Listed
Top product applications:
- Industrial Fire Alarm System
- Security System for High-Risk Areas
- Emergency Response System for Hospitals
EDWARDS SIGNALING 5530M-24N5 is a surface-mount multi-tone signal with a horn-style audible output and continuous sound pattern. It operates on 120V AC, has a sound output rating up to 110 dB, and is rated for indoor and outdoor locations. The unit features a zinc alloy housing, conduit/surface mounting, and multiple Division 2 hazardous location ratings.
Key Features:
- Horn-style audible alarm with continuous sound pattern
- Sound output rated up to 110 dB
- minimum alarm volume rated at 95 dB at 1 m and 98 dB at 10 ft
- 120V AC operation with 0.36 A operating current
- Surface and conduit mounting with wire leads connection
- Zinc alloy housing with gray finish
- Rated for indoor and outdoor locations
- Multiple Division 2 hazardous location ratings
- NEMA 3R enclosure rating
- Operating temperature: -31 to 104 degrees F in hazardous locations
- -40 to 151 degrees F in non-hazardous locations
- Captive components
- no visual indicator
- no vibration
- cULus and UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 12.10
- Package Height: 10.10
- Package Weight: 13.00
