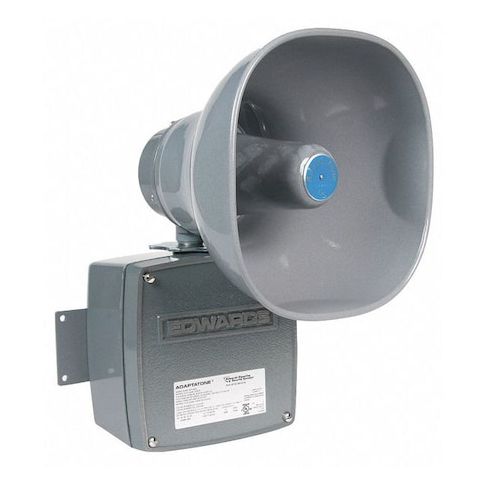

Remote Speaker Amplifier, Horn, Continuous, 24V AC/DC, 100 dB, Zinc Alloy, Gray MPN:5532M-AQ
Free Shipping
In Stock
The Edwards Signaling Remote Speaker Amplifier is a versatile and reliable audible alarm solution for various applications. Suitable for both indoor and outdoor use, this continuous horn amplifier can be mounted via conduit or surface, making it adaptable to different installation requirements. With a loud 100 dB sound pattern, it effectively alerts individuals to potential hazards or situations. UL Listed and suitable for Division 2 locations, this product is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites. Its durable zinc alloy housing ensures long-lasting performance in harsh environments.
Top product features:
- Captive Components
- Continuous Sound Pattern
- 100 dB Decibel Rating
Top product applications:
- Factory Floor Alarm
- Warehouse Security System
- Construction Site Alert System
EDWARDS SIGNALING 5532M-AQ is a remote speaker amplifier with a continuous horn output for 24V AC/DC systems. It provides an audible signal rated at 100 dB, with published sound levels ranging from 95 to 120 dB at 1 m and 98 to 113 dB at 10 ft. The unit features a gray zinc alloy housing for indoor and outdoor use and carries Class I, Division 2 and Class II, Division 2 hazardous location ratings.
Key Features:
- Horn alarm with continuous sound pattern
- 24V AC/DC operation
- Current draw: 0.7 A at 24V DC and 1.3 A at 24V AC
- Sound output: 100 dB nominal
- 95 to 120 dB at 1 m and 98 to 113 dB at 10 ft
- Gray zinc alloy housing
- Surface and conduit mounting with wire leads
- For indoor and outdoor use
- IP44 and NEMA 3R rated
- Hazardous location ratings: Class I, Division 2
- Class II, Division 2
- Class I, II, III
- Division 2
- Operating temperature: -31°F to 104°F in hazardous locations and -40°F to 151°F in non-hazardous locations
- 55 sound patterns
- Captive components
- No visual indicator
- No vibration
- UL 464 and UL 1604 Listed
- Dimensions: 13 in. H x 8.25 in. W x 8.875 in. D
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 11.80
- Package Height: 10.50
- Package Weight: 12.20
