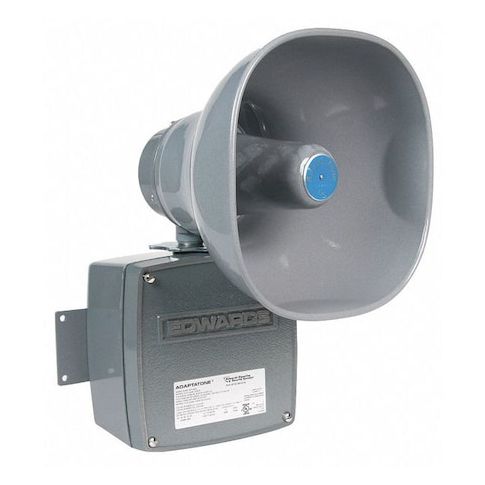

Multi-Tone Signal, Horn, Continuous, 24V AC/DC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount MPN:5531M-24AQ
Free Shipping
In Stock
The Edwards Signaling Multi-Tone Signal, Horn is a versatile and reliable audible alarm designed for indoor and outdoor use. With a 110 dB continuous sound pattern, it effectively alerts individuals to potential hazards. Constructed from durable zinc alloy, this horn is suitable for Division 2 locations and operates in temperatures ranging from -31 to 151 degrees F. Its compact size and conduit or surface mount options make it ideal for a variety of applications, including industrial, commercial, and residential settings. This horn is UL listed and cULus certified, ensuring compliance with safety regulations.
Top product features:
- It produces a 110 dB continuous sound
- It is designed for use in hazardous locations, including Division 2 locations
- It is suitable for use in temperatures ranging from -31 to 104 degrees F indoors and -40 to 151 degrees F outdoors
Top product applications:
- Factory alarm system for monitoring equipment malfunctions
- Security system for office buildings and shopping malls
- Emergency evacuation system for high-rise buildings
The EDWARDS SIGNALING 5531M-24AQ is a multi-tone horn signal for audible warning applications. It operates on 24V AC/DC, produces up to 110 dB, and provides 55 sound patterns. The unit features a gray zinc alloy housing and is designed for conduit, surface-mounted installation in indoor or outdoor locations.
Key Features:
- Audible alarm type: Horn with continuous sound output.
- Sound output: 110 dB maximum at 10 ft
- 98 dB minimum at 10 ft
- 95 dB minimum at 1 m.
- Voltage: 24V AC/DC.
- Current draw: 0.74 A at 24V DC
- 1.3 A at 24V AC.
- Construction: Gray zinc alloy housing.
- Mounting/connection: Conduit, surface mount with wire leads.
- Location ratings: Indoor/outdoor
- NEMA 3R
- IP44.
- Hazardous location ratings: Class I, Division 2
- Class II, Division 2
- Class I, II, III
- Division 2.
- Operating temperature: -31°F to 104°F in hazardous locations
- -40°F to 151°F in non-hazardous locations.
- Additional features: Captive components
- no visual indicator
- no vibration.
- Standards: cULus, UL Listed.
- Overall size: 13 3/4 in. L x 8 in. W x 8 3/4 in. D.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 11.90
- Package Height: 10.30
- Package Weight: 12.20
