Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Gray Housing, Red Lens MPN:869STRR-AQ

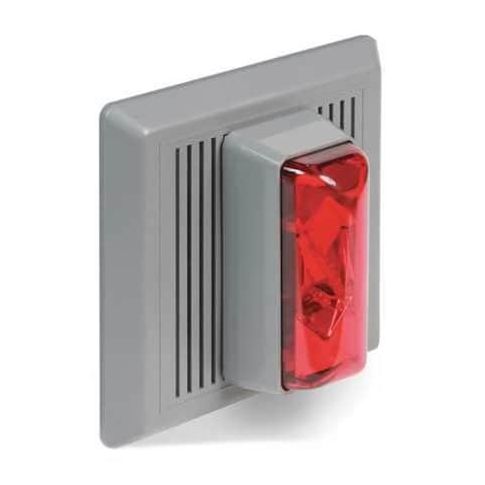

• EDWARDS SIGNALING 869STRR-AQ is an indoor horn strobe that combines an audible horn and visual strobe in one unit. It operates on 24V AC or 24V DC, features a continuous horn pattern, and includes a red xenon strobe lens in a gray thermoplastic housing. The unit is configured for direct-wire installation with wire leads and supports flush or surface mounting.

  Key Features:

  • Audible and visual signaling with horn and strobe indicator
  • Sound output: 90 dB at 10 ft maximum
  • 100 dB at 1 m maximum
  • Sound pattern: continuous horn
  • 1 sound pattern
  • Light output: 21 CP xenon strobe, 60 flashes per minute
  • Voltage: 24V AC, 24V DC
  • Current draw: 462 mA at 24V AC
  • 412 mA at 24V DC
  • Construction: gray thermoplastic housing with red lens
  • Mounting and connection: flush mount, surface mounting, wire leads, direct-wire control
  • Size: 5.5 in H x 5.5 in W x 0.625 in D
  • Location rating: indoor
  • Standards: UL Listed
