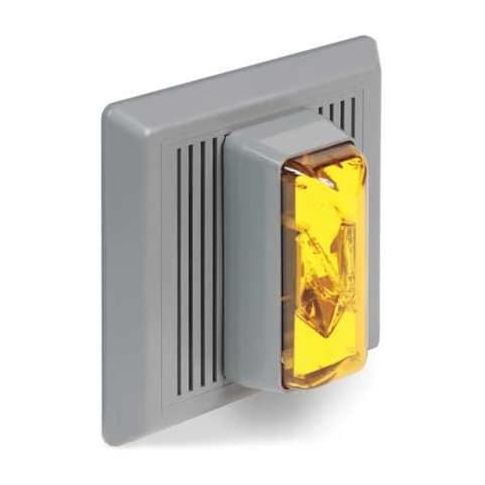

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Amber Lens, Gray Housing MPN:869STRA-AQ
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a versatile and reliable signaling device designed for indoor and outdoor use. Its 90 dB sound level ensures maximum visibility and audibility, making it ideal for applications such as industrial facilities, construction sites, and emergency response situations. The thermoplastic housing is engineered for durability and resistance to extreme temperatures, while the amber lens provides clear visibility in low-light conditions. Easy to install and maintain, this horn strobe is perfect for flush or panel mounting, and its compact size makes it suitable for a variety of applications, including fire alarm systems and security installations.
Top product features:
- Horn and strobe warning device emits a 90 dB sound and flashes a light to alert occupants of a hazard.
- Engineered thermoplastic housing provides durability and resistance to extreme temperatures.
- Amber lens color provides high visibility in a variety of lighting conditions.
Top product applications:
- Industrial Fire Alarm Systems
- Emergency Evacuation Signals
- Security and Access Control Systems
EDWARDS SIGNALING 869STRA-AQ is an indoor horn strobe that combines an audible horn and amber strobe in one direct-wire signaling device. It is rated for 24V AC or 24V DC and configured for flush mounting, with a gray thermoplastic housing and amber lens for audible horn and visual strobe indication.
Key Features:
- Audible alarm type: horn with continuous sound pattern
- Sound output: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Visual indicator: xenon strobe with amber lens
- Light output: 90 CP
- Flash rate: 60 flashes per minute
- Voltage: 24V AC, 24V DC
- Current draw: 462 mA at 24V AC
- 412 mA at 24V DC
- Connection/control: wire leads with direct-wire control protocol
- Mounting style: flush mount
- Housing material: thermoplastic with gray housing
- Dimensions: 5.5 in H x 5.5 in W x 0.625 in D
- Operating temperature: 32°F to 120°F for indoor use
- Standards: UL Listed
- Vibration feature: not included
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.90
- Package Height: 6.40
- Package Weight: 1.30
