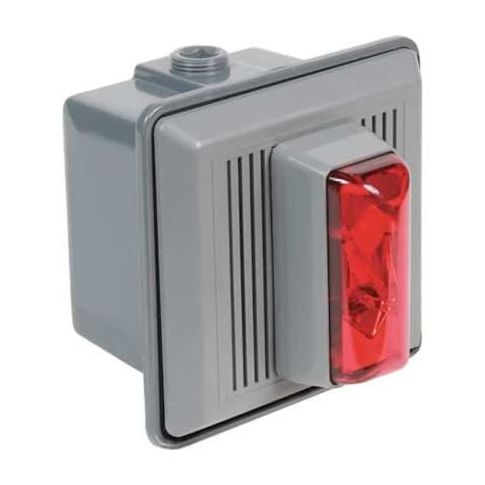

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Gray Housing, Red Lens, Surface Mount MPN:868STRR-N5
Free Shipping
In Stock
This Edwards Signaling Horn Strobe is a reliable and effective signaling device designed for use in a variety of applications, including emergency lighting, industrial settings, and commercial facilities. Its 90 dB output and red lens ensure maximum visibility and attention-grabbing ability. The thermoplastic gray housing and surface mount design provide durability and ease of installation. The device operates on 120V AC and is backed by a lead time of just one day. With its compact size and robust construction, this horn strobe is an ideal solution for any setting where reliable signaling is crucial.
Top product features:
- Thermoplastic housing provides durability and resistance to environmental stress
- Red lens indicates alarm condition to the user
- 90 dB sound output alerts users to potential hazards
Top product applications:
- Emergency Exit Sign
- Fire Alarm System
- Security System
EDWARDS SIGNALING 868STRR-N5 is a surface-mount horn strobe that combines an audible horn and red strobe light in one direct-wire unit. It operates on 120V AC and is rated for outdoor use for audible and visual signaling applications in a single direct-wire device.
Key Features:
- Audible horn and strobe light combination
- Sound output: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Sound pattern: continuous horn with 1 sound pattern
- Light output: 21 CP xenon strobe flashing at 60 flashes per minute
- Electrical rating: 120V AC operation with 148 mA current draw
- Construction: thermoplastic housing with gray housing and red lens
- Mounting and connection: surface mount with wire leads and 3/4 in conduit top entry
- Operating temperature: -31 to 150 degrees F outdoors
- 32 to 120 degrees F indoors
- Dimensions: 5.5 in H x 5.5 in W x 0.625 in D
- UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 6.70
- Package Height: 8.10
- Package Weight: 3.30
