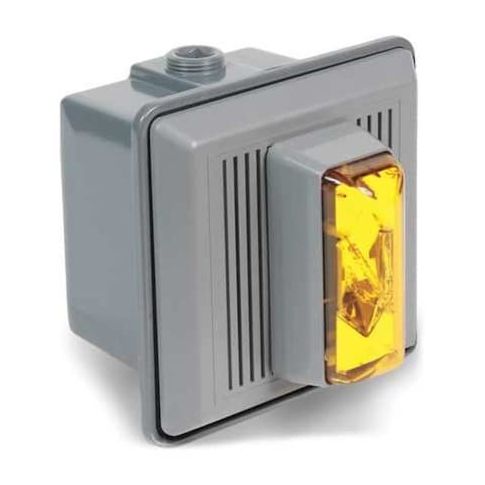

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Amber Lens, Gray Housing MPN:868STRA-N5
Free Shipping
In Stock
The Edwards Signaling Horn Strobe is a high-visibility warning device designed to alert people to potential hazards. Engineered with a durable thermoplastic housing, this unit features a 90 dB horn and a bright amber strobe light, ensuring maximum visibility in a variety of settings. Suitable for use in industrial, commercial, or residential areas, the Horn Strobe is ideal for applications such as emergency exit marking, machine guarding, and safety signage. Its compact design and easy surface mounting make it a versatile solution for a range of warning and notification needs, providing a reliable and effective way to keep people safe.
Top product features:
- It produces a 90 dB sound at 10 ft.
- It has an amber lens.
- It is thermoplastic.
Top product applications:
- Fire Alarm System
- Industrial Security System
- Emergency Exit Sign
The EDWARDS SIGNALING 868STRA-N5 is an indoor horn strobe that combines an audible horn and amber strobe in one surface-mount unit. It operates on 120V AC and provides a continuous horn signal with a visual strobe indicator for use in facility signaling applications with both audible and visual indicators.
Key Features:
- Audible/visual device with horn and strobe combination
- Sound output: 90 dB at 10 ft maximum
- 100 dB at 1 m maximum
- Horn with 1 continuous sound pattern
- Amber xenon strobe with 90 CP light output
- Flash rate: 60 flashes per minute
- Power: 120V AC with direct wire connection and wire leads
- Current draw: 148 mA operating current
- Gray thermoplastic housing with amber lens
- Surface-mount design
- Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
- Operating temperature range: 32°F to 120°F
- UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 6.70
- Package Height: 7.80
- Package Weight: 3.30
