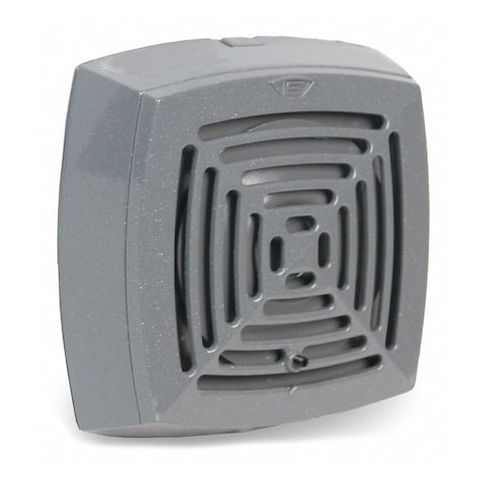

Vibrating Horn, Horn, Continuous, 24V AC, 78 to 103dB, Heavy Duty Die Cast, Gray, Surface Mount MPN:874-G5
Free Shipping
In Stock
The Edwards Signaling Vibrating Horn is a heavy-duty, surface-mount solution for indoor and outdoor applications. With a continuous sound pattern and a decibel range of 78 to 103dB, this horn provides reliable audible notification. Its corrosion-resistant finish and heavy-duty die-cast housing ensure durability in harsh environments. Suitable for use in industrial, commercial, and institutional settings, the horn is also equipped with a vibrating feature to provide additional attention-grabbing capabilities. Its compact design makes it easy to integrate into existing systems, providing a cost-effective and efficient solution for alarm and notification needs.
Top product features:
- Completely Assembled
- Corrosion Resistant Finish
- Vibrating
Top product applications:
- Factory use
- School security systems
- Industrial alarm systems
EDWARDS SIGNALING 874-G5 is a surface-mount vibrating horn for indoor audible signaling. It operates on 24V AC and produces a continuous horn sound with selectable volume, rated from 78 to 103 dB, with a maximum output of 103 dB at 10 ft and 113 dB at 1 m. The unit features a die-cast gray housing with a corrosion-resistant finish and includes Adaptaplate.
Key Features:
- Alarm Type: Audible horn with no visual indicator.
- Sound Output: Continuous horn pattern with selectable volume
- 78 to 103 dB, with maximum 103 dB at 10 ft and 113 dB at 1 m.
- Operating Principle: Vibrating sound principle.
- Electrical Rating: 24V AC input/operating voltage.
- Current Draw: 0.63 A operating current.
- Mounting: Surface-mount design.
- Construction: Die-cast housing in gray with corrosion-resistant finish.
- Connection Type: Plug-in connector.
- Included: Adaptaplate.
- Location Rating: Indoor use.
- Standards: UL Listed.
- Dimensions: 5 in W x 5 in L x 2-1/8 in D.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.40
- Package Height: 3.60
- Package Weight: 2.70
