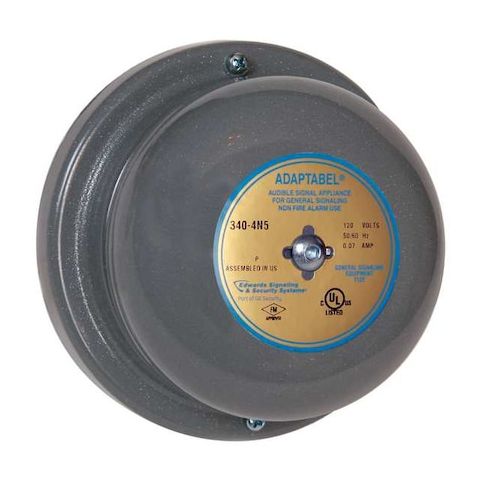

Vibrating Bell, Continuous, 120V AC, 88 dB, Steel, Surface Mount, 4.5 in Diameter, Indoor/Outdoor MPN:340-4N5
Free Shipping
In Stock
The Edwards Signaling Vibrating Bell is a reliable and effective audible alarm solution for indoor and outdoor applications. Its continuous sound pattern and 88 dB decibel rating ensure maximum attention-grabbing capability. The weatherproof design, made from durable steel, allows for easy installation and use in a variety of settings. Perfect for emergency situations, security systems, or industrial applications, this bell is a must-have for any facility that requires a reliable alarm system. Its compact size and surface mount design make it easy to install and integrate into existing systems, providing a clear and consistent warning signal.
Top product features:
- Continuous sound pattern
- Weatherproof by adding an appropriate back box
- Vibrating alarm capability
Top product applications:
- Security Systems
- Fire Alarms
- Industrial Warning Systems
EDWARDS SIGNALING 340-4N5 is a vibrating bell designed for audible signaling in indoor or outdoor locations. It operates on 120V AC and produces a continuous bell sound rated at 88 dB at 10 ft and 98 dB at 1 m. The unit features a steel housing, a surface-mount design for fixed installation, and screw terminal connections. Mounting hardware is included.
Key Features:
- Alarm Type: Audible bell with no visual indicator
- Sound Output: 88 dB at 10 ft
- 98 dB at 1 m
- Sound Pattern: Continuous
- Number of Sound Patterns: 1
- Sound Principle: Vibrating
- Voltage: 120V AC
- Current Draw: 0.062 A
- Operating Current: 0.070 A
- Mounting: Surface mount
- Connection Type: Screw terminal
- Housing Material: Steel
- Size: 4.5 in diameter
- 2.4063 in depth
- Color: Gray
- Location Use: Indoor or outdoor
- Standards: FM, UL Listed
- For outdoor or weather-exposed installations, use the appropriate back box specified by the manufacturer.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 3.80
- Package Weight: 2.55
