Weatherproof Vibrating Horn, 24VDC, Indoor/Outdoor, Surface Mount, .16 Amps, Continuous Sound MPN:877-G1
Free Shipping
In Stock
The Weatherproof Vibrating Horn is a reliable and durable solution for indoor and outdoor applications requiring a loud and attention-grabbing alarm. Its continuous sound pattern and wide decibel range of 78-101dB make it suitable for use in industrial settings, emergency response systems, and security systems. The horn's weatherproof construction and corrosion-resistant finish ensure it can withstand harsh environments and extreme temperatures. Its compact design and convenient plug-in assembly make it easy to install and maintain. Perfect for use in warehouses, factories, and public spaces, this horn provides a clear and audible warning in emergency situations.
Top product features:
- Weatherproof design allows for indoor and outdoor use
- Continuous sound pattern provides a consistent alarm
- Vibrating feature provides an additional alert method
Top product applications:
- Security Systems for High-Risk Areas
- Industrial Alarm Systems for Hazardous Environments
- Emergency Response Systems for Public Buildings

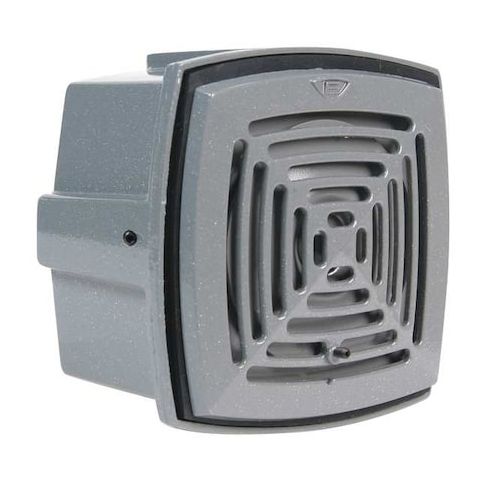

EDWARDS SIGNALING 877-G1 is a NEMA 4X-rated vibrating horn intended for audible warning in indoor and outdoor locations. This 24V DC surface-mount unit provides continuous horn sound with selectable volume and a sound output of up to 111 dB at 1 m and 101 dB at 10 ft. Its die-cast housing has a gray, corrosion-resistant finish for indoor/outdoor audible signaling applications.
Key Features:
- Alarm Type: Audible vibrating horn with no visual indicator.
- Sound Output: 78 to 101 dB, with maximum volume ratings of 111 dB at 1 m and 101 dB at 10 ft.
- Sound Pattern: Continuous sound
- 1 sound pattern.
- Voltage/Current: 24V DC input and operating voltage
- 0.16 A operating current.
- Mounting: Surface mount.
- Construction: Die-cast housing in gray with corrosion-resistant finish.
- Location Rating: Indoor/outdoor use.
- Enclosure Rating: NEMA 4X.
- Standards: UL Listed.
- Dimensions: 4.875 in. H x 4.875 in. W x 2.125 in. D.
- Assembly: Plug-in assembly.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 4.80
- Package Weight: 3.10
