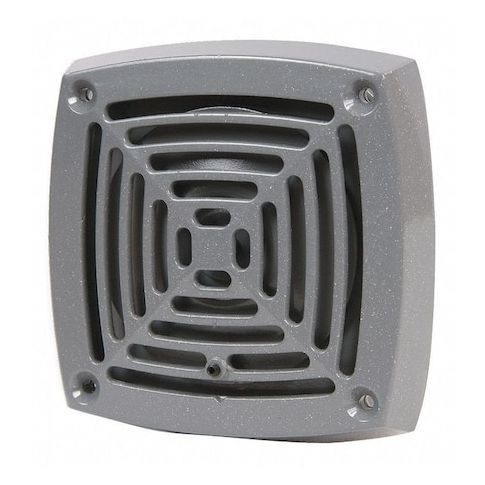

Vibrating Horn, Horn, Continuous, 24V AC, 103 dB, Heavy Duty Die Cast, Gray, Surface Mount MPN:870P-G5
Free Shipping
In Stock
The Edwards Signaling Vibrating Horn is a heavy-duty, continuous sound device designed for indoor and outdoor use. Its 103 dB sound level ensures maximum visibility and attention in high-noise environments. The horn's heavy-duty die-cast construction and corrosion-resistant finish make it suitable for harsh conditions. Ideal for applications such as industrial facilities, warehouses, and construction sites, the vibrating horn provides a reliable warning system for personnel. Its compact size and surface mount design allow for easy installation in tight spaces, making it a versatile solution for a variety of industrial and commercial settings.
Top product features:
- Completely Assembled
- Corrosion Resistant Finish
- Continuous Sound Pattern
Top product applications:
- Industrial Security Systems
- Emergency Evacuation Systems
- Public Address Systems
EDWARDS SIGNALING 870P-G5 is a vibrating horn for audible warning applications. It produces a continuous horn signal at 24V AC and is intended for indoor surface-mount installation. The die-cast housing has a gray finish for facilities requiring a dedicated audible signal without a visual indicator.
Key Features:
- Audible alarm type: Horn with vibrating sound principle
- Sound pattern: Continuous
- number of sound patterns: 1
- Sound output: 103 dB at 10 ft maximum
- 113 dB at 1 m maximum
- Operating voltage: 24V AC
- Operating current: 0.630 A
- Mounting style: Surface mount
- Housing/material: Die cast
- Finish/features: Gray housing
- assembled
- Enclosure rating: NEMA 4X
- Standards: UL Listed
- Includes: Enclosure and gasket
- Visual indicator type: None
- Dimensions: 4.625 in H x 4.625 in W x 1.875 in D
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 3.70
- Package Weight: 2.00
