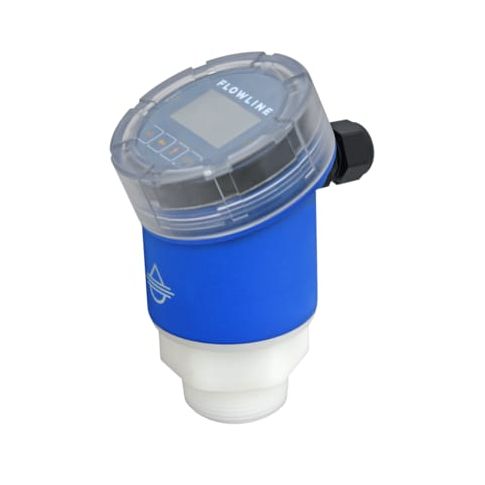

Noncontact Level Sensor, 80 GHz, 30V DC MPN:LR83-0311
Noncontact Level Sensor, 80 GHz, 30V DC
The ECHOBEAM Noncontact Level Sensor is a reliable and accurate solution for measuring levels in various media types, including aggregate solids, grain powder, pellets, petroleum, and water. Its 80 GHz operating frequency and 1.5 inch antenna diameter provide a range of up to 98.4 feet, making it ideal for use in industrial and commercial settings. With an accuracy of +/-2 mm and a spatial resolution of 0.079 inches, this sensor offers precise measurements. Suitable for use in temperatures ranging from -40 to 212 degrees Fahrenheit, it's perfect for applications such as tank monitoring, inventory tracking, and process control.
Top product features:
- Noncontact level detection for aggregate solids, grain powder, pellets, petroleum, and water
- Operates at a frequency of 80 GHz
- Spatial resolution of 0.079 in for precise measurement
Top product applications:
- Level monitoring in grain silos
- Monitoring the water level in a reservoir or tank
- Measuring the level of petroleum in a storage tank
Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 1 1/2 in, Range 98.4 ft, Connection Size 1 1/2 in, Connection Type G, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 6 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 1 57/64 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 212 Degrees F
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.90
- Package Width: 8.20
- Package Height: 6.40
- Package Weight: 2.41
Product info last updated on February 12, 2026 1:39am UTC
Category: Industrial Electrical Controls and Automation
