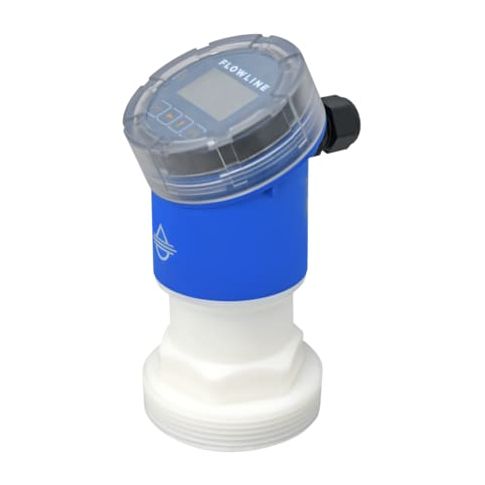

Noncontact Level Sensor, 80 GHz, 30V DC MPN:LR85-0301
Noncontact Level Sensor, 80 GHz, 30V DC
The ECHOBEAM Noncontact Level Sensor is a cutting-edge solution for monitoring levels in various media types, including aggregate solids, grain powder, pellets, petroleum, and water. Its 80 GHz operating frequency provides accurate measurements with a spatial resolution of 0.079 in, while its 4-degree beam angle ensures reliable detection. Ideal for use in harsh environments, this sensor operates within a temperature range of -40°F to 248°F and withstands pressures up to 43.5 psi. Suitable for applications in industries such as agriculture, manufacturing, and energy, this sensor offers real-time level monitoring and alerts, improving process efficiency and reducing downtime.
Top product features:
- Noncontact measurement capability allows for level sensing without physical contact with the media.
- Accuracy of +/-2 mm ensures precise level measurements.
- Spatial resolution of 0.079 in enables detailed measurement of media surfaces.
Top product applications:
- Grain storage monitoring
- Petroleum tank level monitoring
- Water treatment plant level monitoring
Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 3 in, Range 196.8 ft, Connection Size 3 in, Connection Type NPT, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 4 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 3 1/2 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 248 Degrees F, Output Wire Configuration 4-Wire
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.25
- Package Height: 6.25
- Package Weight: 3.35
