Noncontact Level Sensor, 80 GHz, 30V DC MPN:LR85-0351
Noncontact Level Sensor, 80 GHz, 30V DC

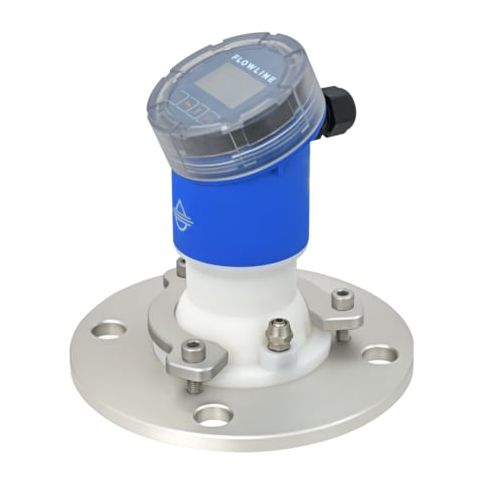

The ECHOBEAM Noncontact Level Sensor is a high-precision, 80 GHz device designed for measuring the level of various media types, including aggregate solids, grain powder, pellets, petroleum, and water. Its noncontact design and +/-2 mm accuracy make it ideal for applications where minimal disturbance is required. With a range of 196.8 ft and a beam angle of 4 degrees, this sensor is suitable for use in industrial and commercial settings, such as in tanks, silos, and storage containers. Its fast and reliable output makes it a valuable tool for process monitoring and control, ensuring optimal levels and minimizing waste.
Top product features:
- Noncontact measurement capability
- Operates at 80 GHz frequency
- Spatial resolution of 0.079 in
Top product applications:
- Grain level monitoring in silos and storage tanks
- Level monitoring in petroleum storage tanks
- Monitoring water levels in reservoirs and tanks
Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 3 in, Range 196.8 ft, Connection Type DIN80 Flange, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 4 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 3 1/2 in, Operating Pressure - Maximum 0 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 248 Degrees F, Output Wire Configuration 4-Wire
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.25
- Package Height: 6.25
- Package Weight: 7.85
