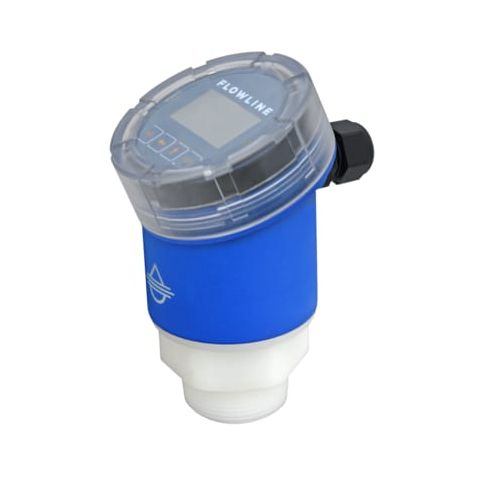

Noncontact Level Sensor, 80 GHz, 30V DC MPN:LR83-0300
Noncontact Level Sensor, 80 GHz, 30V DC
The ECHOBEAM Noncontact Level Sensor is a high-precision solution for measuring the level of various media types, including aggregate solids, grain powder, pellets, petroleum, and water. Its 80 GHz frequency ensures accurate readings with a +/-2 mm accuracy, while its 6-degree beam angle and 0.079 in spatial resolution provide precise measurement capabilities. Ideal for use in industrial settings, this sensor offers reliable and consistent results, making it suitable for applications such as material storage, processing, and transportation, as well as in water treatment and management facilities. Its compact design and easy installation make it a convenient addition to any monitoring system.
Top product features:
- Noncontact level measurement allows for continuous monitoring without physical contact with the media.
- Operates at a frequency of 80 GHz for precise measurement.
- Measures media levels with an accuracy of +/-2 mm.
Top product applications:
- Level monitoring in grain silos
- Monitoring water levels in storage tanks
- Measuring petroleum product levels in tanks
Noncontact Level Sensor, For Media Type Aggregate Solids, Grain Powder, Pellets, Petroleum, Water, Antenna Diameter 1 1/2 in, Range 98.4 ft, Connection Size 1 1/2 in, Connection Type NPT, Accuracy +/-2 mm, Voltage - Maximum 30V DC, Dead Band 0 in, Beam Angle 6 Degrees , Operating Frequency 80 GHz, Spatial Resolution 0.079 in, Beam Width 1 57/64 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 212 Degrees F
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.40
- Package Height: 6.50
- Package Weight: 2.31
Product info last updated on January 15, 2026 4:18am UTC
Category: Industrial Electrical Controls and Automation
