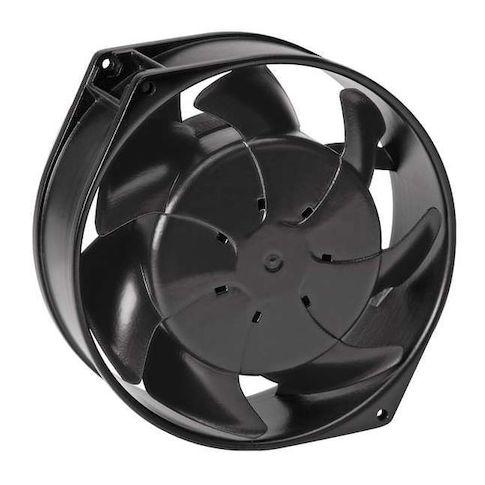

Axial Fan, Round, 230V AC, 1 Phase, Fiberglass Reinforced Polypropylene, 172mm W. MPN:W1G130-AA25-01
Axial Fan, Round, 230V AC, 1 Phase, Fiberglass Reinforced Polypropylene, 172mm W.
This compact axial fan from EBM-Papst is designed for a wide range of applications, including industrial and commercial settings. Its 230V AC, 1-phase motor provides efficient airflow, moving 218 CFM at a quiet 56 dBA. Constructed from durable fiberglass-reinforced polypropylene, the fan is built to withstand harsh environments. Its ball-bearing design ensures smooth operation, while thermal protection and a maximum ambient temperature of 158°F provide added reliability. Ideal for use in ventilation systems, the fan's horizontal/vertical mounting flexibility makes it easy to integrate into existing infrastructure, making it a reliable choice for various industrial and commercial applications.
Top product features:
- Fiberglass Reinforced Polypropylene construction for durability
- 24 W power consumption for energy efficiency
- 218 cfm airflow at 0.000-In. static pressure for effective cooling
Top product applications:
- Cooling Computer Systems
- Ventilation for Industrial Equipment
- Heating and Air Conditioning Systems
Axial Fan, Fan Shape Round, Mounting Eye O.C. 6 3/8 in, Height Not Applicable, Diameter 6 3/4 in, Depth 2 5/16 in, Width Not Applicable, CFM @ 0.000-In. SP 218 cfm, Watts 24 W, Voltage 230V AC, 60/50 Hz Hz, 0.19 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 56 dBA, IP Rating IP55, Mounting Position Horizontal/Vertical, Bearing Type Ball, 3,200 RPM RPM, Motor Insulation B, Thermal Protection Yes, Max. Ambient Temp. 158 Degrees F, Blade Material Polyamide
Additional Information
- Country of Origin: HU
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 8.40
- Package Height: 4.70
- Package Weight: 2.10
Product info last updated on February 5, 2026 11:46am UTC
Category: Fans
