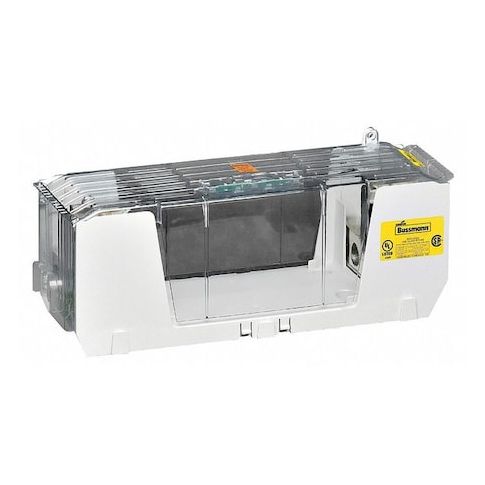

Open Fuse Block, 450 to 600A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug MPN:RM60600-1CR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5670183
Open Fuse Block, 450 to 600A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug
Eaton Bussmann's Open Fuse Block is a reliable and versatile solution for high-current applications. Designed for use with Class R fuses, it offers a 450-600A amp range and 600V AC/DC voltage rating, making it suitable for a wide range of industrial and commercial settings. The fuse block features a compact, open design with a wire range of 4 AWG to 500 MCM, and is compatible with various fuse series. Its bolt-down and DIN rail mounting options provide flexibility, while its thermoplastic body ensures durability. Ideal for use in power distribution systems, the Open Fuse Block is a trusted choice for applications requiring high current capacity and reliability.
Top product features:
- Supports fuse type Class R
- Designed for 4 AWG to 500 MCM wire range
- Mounts via bolt-down or DIN rail
Top product applications:
- Main electrical panel boards
- Industrial electrical distribution systems
- High-amperage electrical equipment installations
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 401 to 600 A, Number of Poles 1, 600V AC/300V DC, For Fuse Size 10 3/8 in L x 2 7/8 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 4 AWG to 500 MCM, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 6 in, Width 4.89 in, Length 15.11 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 180 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 14.60
- Package Width: 5.20
- Package Height: 6.20
- Package Weight: 4.00
Product info last updated on January 15, 2026 8:20am UTC
Category: Fuses and Accessories
