Power Distribution Block, Finger-Safe, 1 Pole, 760 A Copper, 600 V AC/DC, Panel MPN:PDBFS504
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3289955

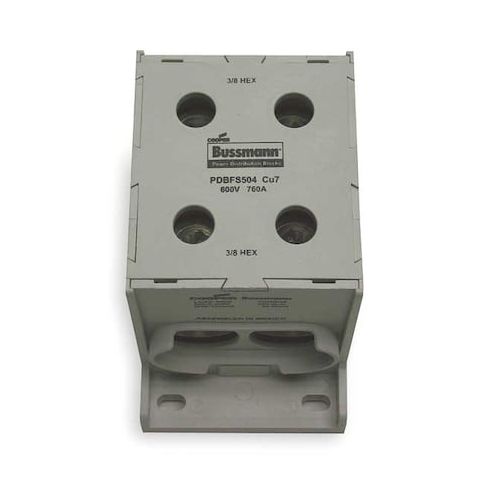

Power Distribution Block, Finger-Safe, 1 Pole, 760 A Copper, 600 V AC/DC, Panel
The Eaton Bussmann Power Distribution Block is a reliable and efficient solution for power distribution in various applications. Suitable for use with aluminum or copper conductors, this block features two line and two load connections, accommodating wire sizes from 6 AWG to 500 kcmil. With a maximum current rating of 760 A and a voltage rating of 600 V AC/DC, it can handle demanding power requirements. Ideal for use in commercial and industrial settings, this block is a valuable addition to any electrical distribution system, ensuring safe and reliable power delivery.
Top product features:
- Finger-safe design for safe handling
- Accepts line connections with a minimum of 6 AWG copper wire and a maximum of 500 kcmil
- Accepts load connections with a maximum current of 760 A for copper conductors
Top product applications:
- Main Panel Distribution
- Feeders and Bus Ducts
- Switchgear and Motor Control Centers
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 500 kcmil, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 4.60
- Package Height: 3.70
- Package Weight: 0.90
Product info last updated on January 28, 2026 6:50am UTC
Category: Electrical Connectors
