Open Fuse Block, 110 to 200A Amp Range, 250V AC/DC Volt Rating, 3 Poles, Box Lug MPN:HM25200-3CR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2590686

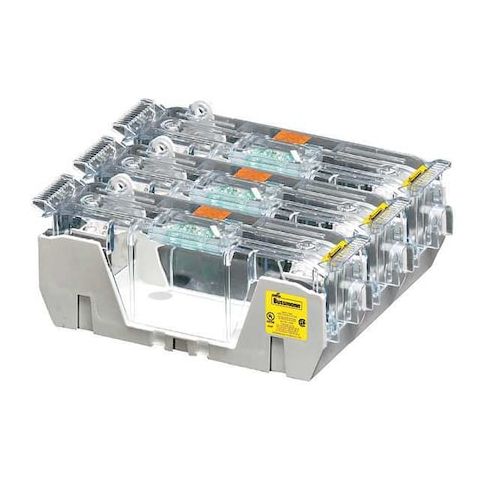

Open Fuse Block, 110 to 200A Amp Range, 250V AC/DC Volt Rating, 3 Poles, Box Lug
This open fuse block from Eaton Bussmann is designed for use in industrial and commercial applications where high current ratings are required. With a 110-200A amp range and 250V AC/DC voltage rating, it can handle a variety of electrical loads. The 3-pole design allows for easy installation and maintenance, and the box lug connector provides a secure and reliable connection. Suitable for use with Class H and Class K5 fuses, this fuse block is a versatile solution for applications such as power distribution, motor control, and lighting systems, offering improved safety and efficiency.
Top product features:
- Open design allows for easy access and inspection of the fuse block.
- Supports fuse types Class H and K5, providing flexibility in fuse selection.
- Wire range of 6 AWG to 250 MCM accommodates various wire sizes for increased installation flexibility.
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Heavy-duty electrical distribution systems
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 101 to 200 A, Number of Poles 3, 250V AC, For Fuse Size 7 1/8 in L x 1 9/16 in dia, Compatible Fuse Series NLN, NON, OT, REN, RF, RLN, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 250 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 3.8 in, Width 8 in, Length 11.2 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 11.10
- Package Height: 4.50
- Package Weight: 3.65
Product info last updated on January 13, 2026 11:57am UTC
Category: Fuses and Accessories
