Power Distribution Block, Open, 3 Pole, 310 A Copper, 600 V AC/DC MPN:16005-3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2063862

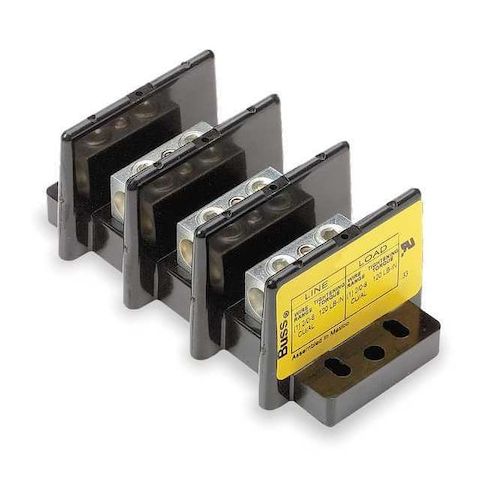

Power Distribution Block, Open, 3 Pole, 310 A Copper, 600 V AC/DC
This Eaton Bussmann Power Distribution Block is a reliable and efficient solution for distributing power in various applications. Its 3-pole design and 310A maximum current rating make it suitable for use in commercial and industrial settings. The block features copper construction for optimal conductivity and can handle line and load connections up to 350 kcmil. Easy to mount on a surface, this product is ideal for use in electrical panels, switchboards, and other power distribution systems. Its compact size and high capacity make it a valuable addition to any electrical installation.
Top product features:
- It distributes power to loads with a maximum current of 310 A.
- It can handle copper wire sizes from 6 AWG to 350 kcmil on the line side.
- It can handle copper wire sizes from 6 AWG to 350 kcmil on the load side.
Top product applications:
- Main Power Distribution Panel
- Emergency Power Systems
- High-Density Data Centers
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 2.6 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.70
- Package Height: 2.20
- Package Weight: 0.96
Product info last updated on January 14, 2026 11:50pm UTC
Category: Electrical Connectors
