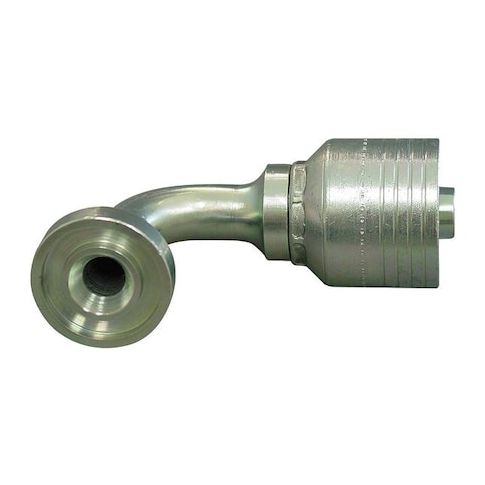

Hydraulic Hose Fitting, 90deg Elbow Shape MPN:4S24FHB24
Hydraulic Hose Fitting, 90deg Elbow Shape
This 90-degree hydraulic elbow fitting from Eaton Aeroquip is designed for use with a variety of hose series, including EC525, EC810, FC254, FC273B, FC500, FC636, FC736, GH493, and GH506. Suitable for applications requiring a rigid, 90-degree connection, this fitting is ideal for hydraulic systems where a compact, high-performance solution is needed. Its crimp connection ensures a secure and reliable seal, while its flange connection type provides a robust and leak-free connection. With a vacuum rating not rated, this fitting is perfect for applications where high pressure and performance are crucial, such as in industrial, agricultural, and construction equipment.
Top product features:
- 90 degree elbow shape provides a compact connection point for hydraulic hoses
- Crimp fitting allows for secure and leak-free connections to hoses
- Rigid design provides a durable and long-lasting connection point for hydraulic systems
Top product applications:
- Hydraulic systems for heavy equipment
- Pneumatic systems for industrial machinery
- Automotive brake systems
- Hydraulic Crimp Fitting, For Hose Dash Size -24, For Use With Hose Series EC525-12 to -32
- EC810-12
- -16
- FC254-12 to -32
- FC273B-12
- -16
- FC500-12 to -24
- FC636-12 to -32
- FC736-12 to -32
- GH493-12 to -32
- GH506-12 to -32, For Hose I.D. 1 1/2 in, Fitting Shape 90 Degrees Elbow, Rigid, Vacuum Rating Not Rated, Thread Type Flange, Hose Fitting A Gender Male, Hose Fitting B Gender Genderless, Hose Fitting B Size 1 1/2 in, Hose Fitting A Connection Type Flange, Hose Fitting B Connection Type Crimp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 12.00
- Package Height: 5.00
- Package Weight: 5.30
Product info last updated on February 27, 2026 1:08am UTC
Category: Hydraulic Cylinders and Equipment
