NEMA Fusible Str, Size 4, 240V Coil, 3R Enc MPN:ECN1642BAH-R63/FL30
NEMA Fusible Str, Size 4, 240V Coil, 3R Enc

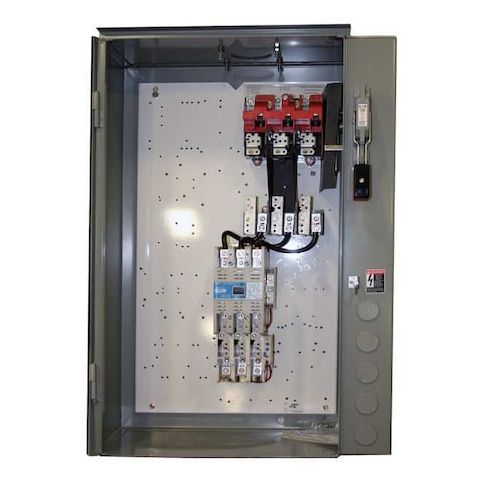

The Eaton NEMA Fusible Str, Size 4, 240V Coil, 3R Enc is a reliable and efficient solution for industrial applications. This NEMA combination starter is designed to handle high horsepower loads, with a rating of 100 hp at 600V AC and 40 hp at 208V AC. Its 240V coil and 3R enclosure make it suitable for a variety of settings, including control panels and switchgear. The starter features short circuit protection and a non-reversing design, providing safe and reliable operation. Ideal for industries such as manufacturing, oil and gas, and food processing, this starter ensures efficient and safe motor control.
Top product features:
- Three-phase operation up to 600V AC supports high-power applications.
- Short circuit protection via fusible disconnect ensures safe operation.
- Reversing capability is not available, limiting use to non-reversing applications.
Top product applications:
- Industrial control systems
- High-voltage applications
- Power distribution systems
NEMA Combination Starter, Coil Voltage 240V AC, Current AC 135 A, Horsepower @ Three Phase - 600V AC 100 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 3R, NEMA Size 4, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 40 hp, Control Transformer Voltage Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.38
- Package Width: 30.75
- Package Height: 12.38
- Package Weight: 170.00
