NEMA Fusible Str, Size 1, 120V Coil, 4X Enc MPN:ECN1614AAB-R63/D
NEMA Fusible Str, Size 1, 120V Coil, 4X Enc

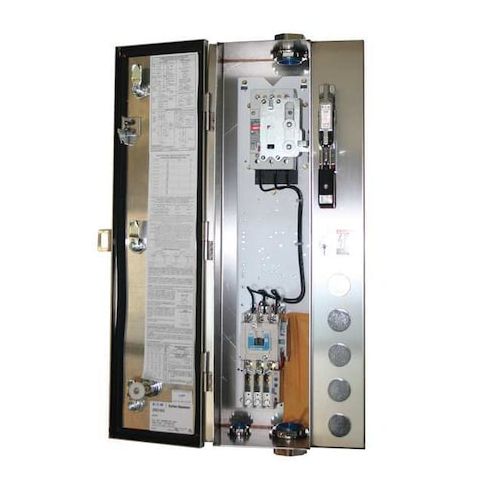

This NEMA Combination Starter from Eaton is a reliable and efficient solution for controlling and protecting your electrical systems. Suitable for use in a variety of applications, including industrial and commercial settings, it features a 4X enclosure rating and a maximum voltage rating of 600V AC. The starter is designed to handle high current loads, with a rating of 27A, and is capable of handling up to 10 horsepower at 600V AC. Its non-reversing design and short circuit protection make it a safe and reliable choice for a range of applications, including those in hazardous locations.
Top product features:
- Fusible disconnect provides short circuit protection
- Reversing capability is non-reversing
- Includes an auxiliary contact in the form of 1NO
Top product applications:
- General Purpose Control
- Motor Control in Hazardous Locations
- High Horsepower Motor Control
NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 27 A, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 4X, NEMA Size 1, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 7 1/2 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.12
- Package Width: 11.62
- Package Height: 10.25
- Package Weight: 48.00
