Overload Relay, 2NC/2NO, 4 A Min current, 20 A Max current, 690V AC MPN:C440A1A020SF00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G910042548

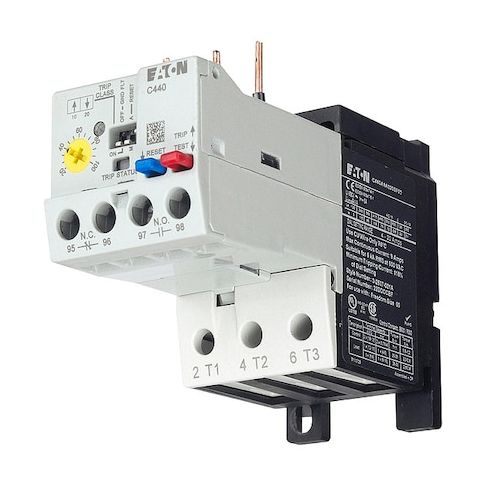

Overload Relay, 2NC/2NO, 4 A Min current, 20 A Max current, 690V AC
Eaton's 2NC/2NO Overload Relay is a reliable and versatile solution for industrial applications. This overload relay is designed to protect motors and electrical equipment from overloads and short circuits, ensuring safe and efficient operation. With a minimum current setting of 4A and a maximum setting of 20A, it provides precise control and flexibility for a wide range of applications. Suitable for use in harsh environments, it features a NEMA size 00 enclosure and screw clamp terminals. Ideal for use in series C25 definite purpose, Freedom, and other industrial settings, this overload relay is a valuable addition to any electrical system.
Top product features:
- Overload protection with adjustable current settings from 4 A to 20 A
- Provides 2NC/2NO auxiliary contact form for additional circuit control
- Trip class 10/20/30 allows for customizable overload protection levels
Top product applications:
- Motor Protection
- Industrial Power Distribution Systems
- High-Current Control Circuits
Overload Relay, Auxiliary Contact Form 2NO/2NC, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 4 A, Trip Class 10/20/30, Maximum Voltage Rating 690V AC, NEMA Size 00, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series C25 Definite Purpose, Freedom, Frame Size Not Applicable
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 27 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 3.00
- Package Height: 6.50
- Package Weight: 1.00
Product info last updated on April 14, 2026 4:45pm UTC
Category: Industrial Electrical Controls and Automation
